///PRISM T500 ATX Mid Tower

PRISM T500 ATX Mid Tower

  • 9 LED MODES: Illuminate your gaming system in seven LED colors plus two LED lighting effects; set Breathing mode or Cycle between Red, Green, Blue, Purple, Orange, White and Yellow LEDs.

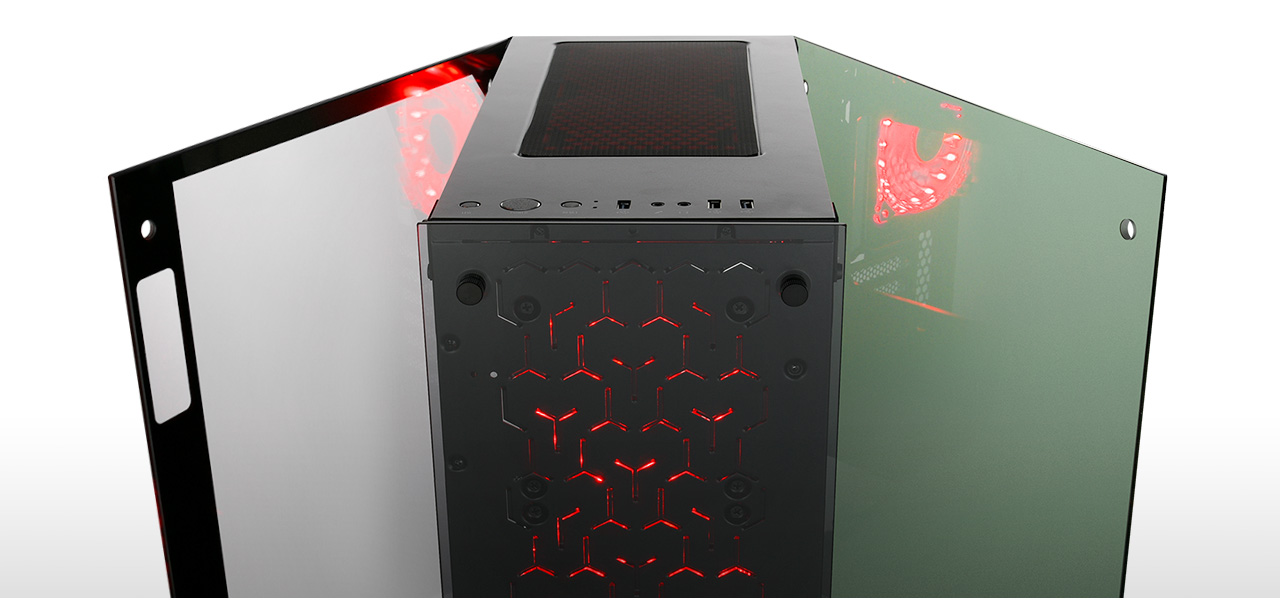

  • 3-SIDED TEMPERED GLASS: This tempered computer case features three sides of enclosed tempered glass, allowing you to display every component of your battlestation build for all to admire.
  • FRONT AIR INTAKE: The unique front intake fans draws in cool air to keep your system temperatures low and your case well-ventilated by optimizing airflow to your components.
  • CABLE MANAGEMENT: Display your PC build without any distractions by tucking away HDD/SSD and power supply cables within the PSU shroud for clean, excellent cable management and increased air circulation.
  • MESMERIZING DESIGN: Show off your gaming PC case featuring 4 x 120mm pre-installed LED fans that shine through the front hexagonal crevices, enhanced by glossy tempered glass and black steel.
Buy now
SKU: 11-147-287 Category:

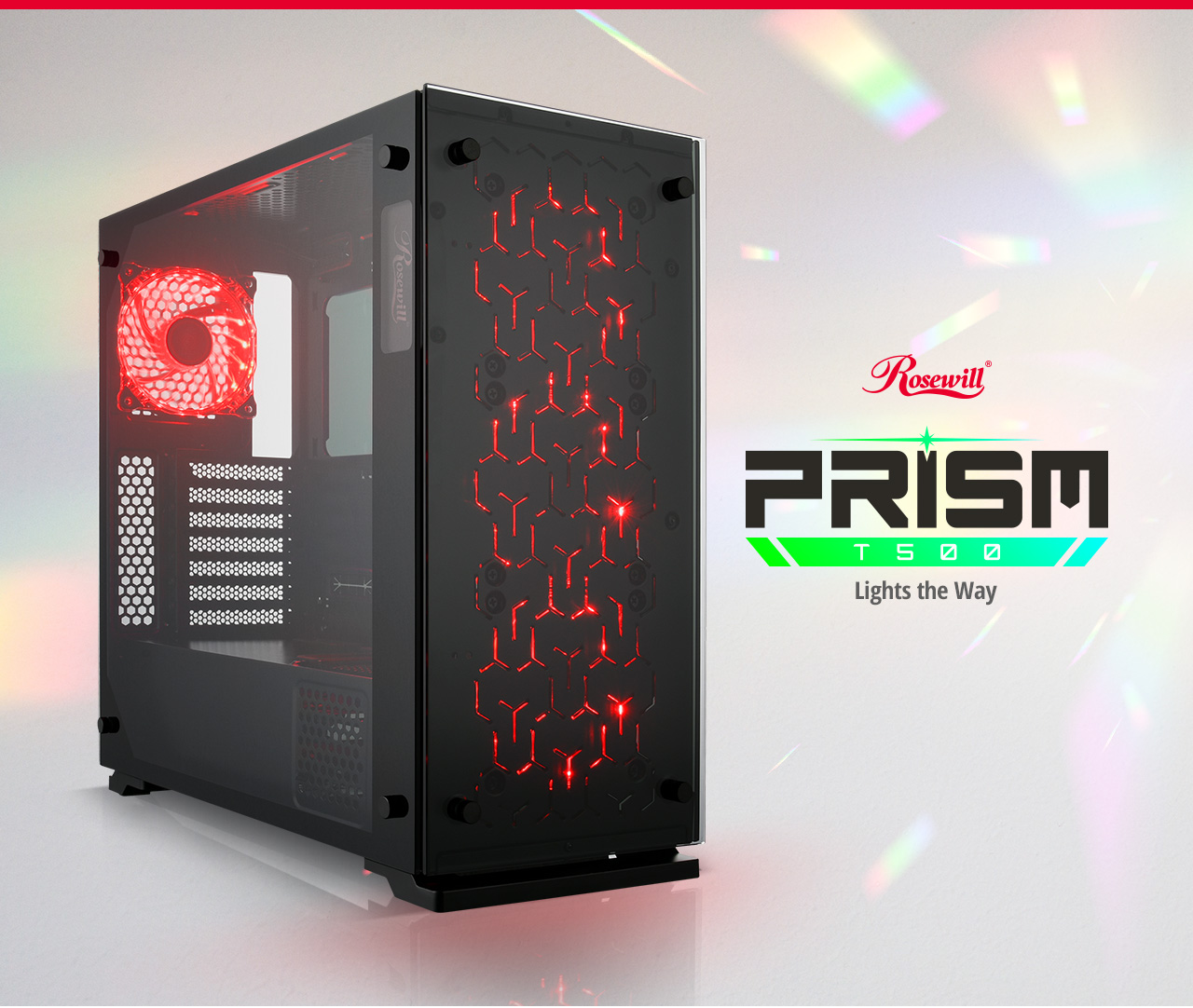

Hexagon Front Design
Carved multi-shape edges refract LED lights to create amazing effects. Switch between seven preset colors and two backlight modes.
Additional Features

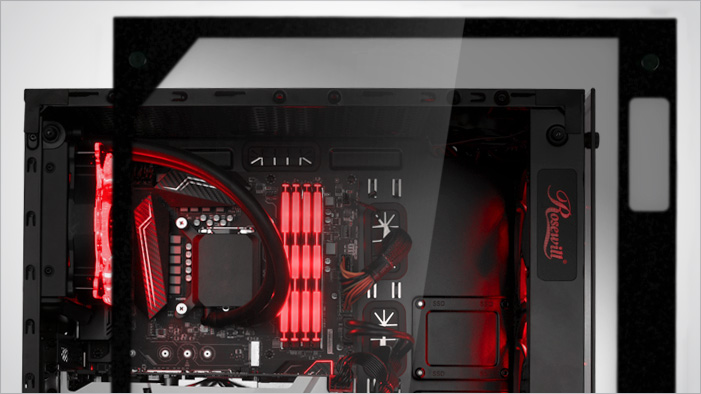

Tempered Glass Window
Build something spectacular and show it off through the sturdy, grey tinted tempered glass window.

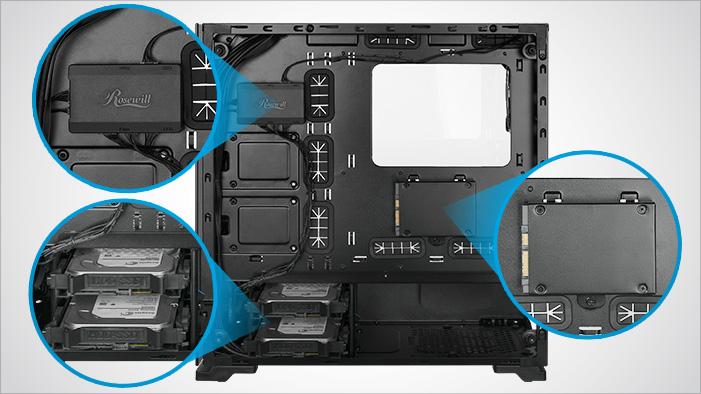

Storage Options
Install either two HDD or SSD drives on the drive cage with another one in the removable drive slot.

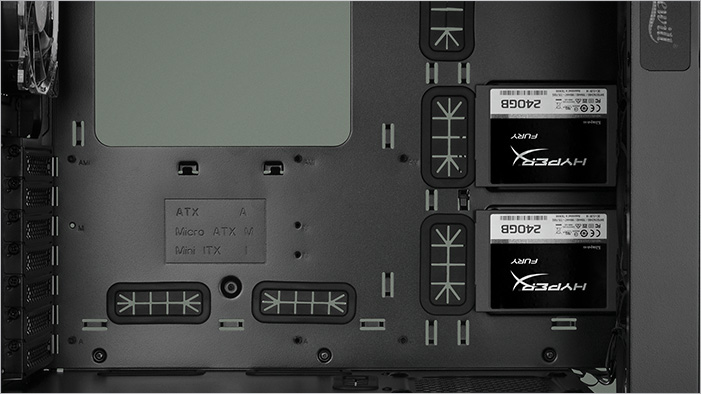

Extra Storage
Install additional SSD drives next to the front fans.

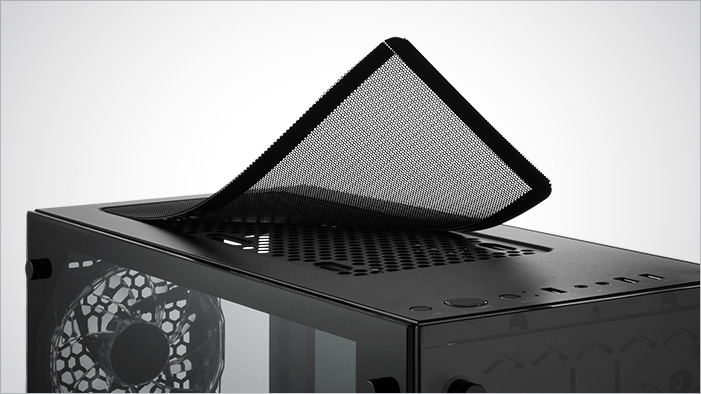

Top Dust Filter
Minimize particle buildup with equipped magnetic dust filters that protectively stay in place and are removable for easy cleaning.
PSU Dust Filter
Get rid of excess dust with the removable dust filter below the PSU mount.

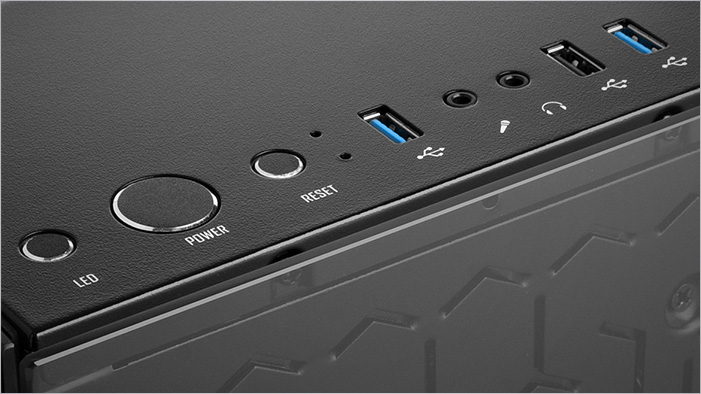

Top I/O Panel
Convenient I/O panel with two USB 3.0, one USB 2.0, Audio and Mic ports for easily connecting various peripherals. Plus, instantly change lighting colors and effects with the LED button.
Brand

Rosewill

Series

PRISM T500

Model

R0901003-0118

Case Type

Mid Tower

Color

Black

Case Material

Steel / Plastic / Tempered Glass

With Power Supply

No

Power Supply Mounted

Bottom

Motherboard Compatibility

ATX, Micro ATX, ITX, Mini-ITX

Internal 3.5" Drive Bays

2 (0)

Internal 2.5" Drive Bays

3 (5)

Expansion Slots

7

Front Ports

1 x USB 2.0 / 2 x USB 3.0 / Audio In&Out / LED Light Control

Fan Options

Front: 3 x 120mm LED fan (pre-installed)

Rear: 1 x 120mm LED fan (pre-installed)

Top: 2 x 120mm fan (optional)

Bottom: 1 x 120mm fan (optional)

Radiator Options

Front – Up to 240mm

Max GPU Length Allowance

370 mm

Max CPU Cooler Height Allowance

150 mm

Dimensions (H x W x D)

19.49" x 8.15" x 17.32"

Weight

19.40 lbs.

Features

NOTICE: Please make sure your motherboard is equipped with on-board USB 3.0 socket before purchasing

7 x 120 mm Fans: 3 x Front (pre-installed), 1 x Rear (pre-installed), 2 x Top (optional), 1 x Bottom (optional)

Supports 240 mm AIO Liquid Cooling Radiator in Front only (optional)

Supports up to 150 mm Tall CPU Cooler (optional)

Supports up to 370 mm XL Graphics/Video Card (optional)

Top I/O Panel: 2 x USB 3.0, 1 x USB 2.0, Audio Out, Mic In, LED Modes

Grey Tinted Tempered Glass Front and Side Panels

Organized Cable Management

Customer Service and Technical Support

Toll Free: 1 (800) 575-9885
FAX: (626) 271-9504

Customer Service and Technical Support Hours: Monday – Friday, 8:00 AM – 5:00 PM (PST)

Support Email: techsupport@rosewill.com
Warranty and RMA Email: rma@rosewill.com

To register your product for warranty, please click on Warranty Registration.

Icon

PRISM_T500_User Manual_B.pdf 2.22 MB 58 downloads

...
