/Glacier 1000W 80 PLUS® Bronze PSU

Glacier 1000W 80 PLUS® Bronze PSU



  • 1000 Watt Power Supply
  • ATX 12V v2.3 / EPS 12V v2.92
  • Continuous 1000W @ 40 Degree Celsius
  • 80 PLUS Bronze Certified PSU
  • Modular Design
  • 135 mm Silent Aero-Diversion Fan
  • SLI & CrossFire-Ready / Intel 4th Gen CPU Certified
  • Strong Single +12V Rail – Ideal for Gaming Systems





Buy now
SKU: 17-182-343

rosewill

rosewill

FEATURES

rosewill

80 Plus Bronze certified to deliver over 85% efficiency

rosewill

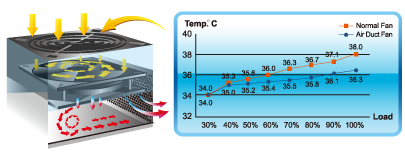

Silent 135mm Aero-Diversion fan with auto-speed control further reduces the heat exhaust from the PSU

rosewill

Modular cable management

rosewill

ATX 12V v2.3-ready, supports EPS 12V v2.92 and backwards compatible with ATX 12V v2.01

rosewill

Active Power Factor Correction (PFC) with PF value of 0.99

rosewill

Crossfire and SLI support

rosewill

Over Current/Voltage/Temperature/Power Protection, Under Voltage Protection and Short Circuit Protection

rosewill

TUV, FCC, CE Certificated

rosewill

rosewill

Extra-long cables support full size gaming chassis

rosewill

Three-Year Warranty

SPECIFICATIONS

Model: Glacier 1000M

AC INPUT 100 ~ 240VAC | 15A-7A | 50/60Hz
DC OUTPUT
+3.3V +5V +12V -12V +5VSB
20A 20A 83A 0.5A 3A
120W 996W 6W 15W
TOTAL POWER 1000W

CONNECTORS

rosewill
20 + 4-Pin
MainBoard
x 1
rosewill
+ 12V EPS
4 + 4-Pin
Connector
x 1
rosewill
+ 12V EPS
8-Pin
Connector
x 1
rosewill
6 + 2-Pin
PCI-E
Connector
x 6
rosewill
S-ATA
Connector
x 8
rosewill
4-Pin Molex
Peripheral
Connector
x 6
rosewill
4-Pin Floppy
Connector
x 2

PACKAGE CONTENTS

  • Power Supply Unit
  • Modular cable set
  • User Manual
  • Carry bag
  • AC power cord
  • Three Cable tie
  • Four Mounting screws
  • Reusable cable bag
Brand

Rosewill

Model

Glacier 1000M

Type

ATX12V / EPS12V

Maximum Power

1000W

Fans

1 x Silent 135mm Fan

PFC

Active

Main Connector

20+4Pin

+12V Rails

Single

PCI-Express Connector

6 x 6+2-Pin

SLI

Yes

CrossFire

CrossFire Ready

Modular

Modular

Efficiency

> 85%

Energy-Efficient

80 PLUS BRONZE Certified

Over Voltage Protection

Yes

Input Voltage

100 – 240 V

Input Frequency Range

50/60 Hz

Input Current

15-7A

Output

+3.3V@20A,+5V@20A,+12V@83A,-12V@0.5A,+5VSB@3A

MTBF

>100,000 Hours

Approvals

TUV, cTUVus, CE, FCC certified

Dimensions

3.19" x 5.91" x 6.50"

Max PSU Length

165 mm

Connectors

Fixed Cable
1x 20+4-Pin Main Connector
1x 4+4-Pin ATX12V/EPS12V Connector
1x 8-pin ATX12V/EPS12V Connector
2x 6+2-Pin PCI-E Connector
Modular Cable :
4x 6+2-Pin PCI-E Connector
8x 5-Pin SATA Connector
6x 4-Pin Peripheral Connector
2x 4-Pin Floppy Connector

Features

80 PLUS BRONZE Certified, Continuous 1000W@40°C
Active-PFC with auto AC-input voltage adjustment(100-240V)
Single strong 12V rail – ideal for gaming system
SLI & CrossFire ready – 6x 6+2pin connector
Silent 135mm fan with auto fan speed control
Aero-diversion design on the fan further reduces the temperature inside of PSU

Over Current/Voltage/Power Protection, Under Voltage Protection, and Short Circuit Protection provide maximum safety to your critical system components

3-year Warranty – One-to-One replacement
Safety & EMI Approval: CE, FCC, ROHS
