///Glacier 600W 80 PLUS® Bronze PSU

Glacier 600W 80 PLUS® Bronze PSU

  • 600W PSU
  • ATX 12V v2.3 / EPS 12V v2.92
  • 80 PLUS BRONZE Certified
  • Modular Design
  • Strong Single +12V Rail
  • 135mm Silent Aero-Diversion Fan
  • Single Strong 12V Rail – Ideal for Gaming Systems
  • SLI & CrossFire-Ready / Intel 4th Generation CPU Certified
Buy now
SKU: 17-182-340 Category:
rosewill

rosewill

FEATURES

rosewill

80 Plus Bronze certified to deliver over 85% efficiency

rosewill

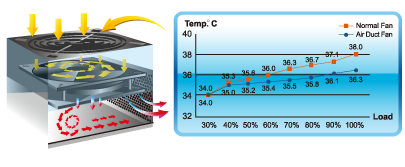

Silent 135mm Aero-Diversion fan with auto-speed control
further reduces the heat exhaust from the PSU

rosewill

Modular cable management

rosewill

ATX 12V v2.3-ready, supports EPS 12V v2.92 and backwards
compatible with ATX 12V v2.01

rosewill

Active Power Factor Correction (PFC) with PF value of 0.99

rosewill

Crossfire and SLI support

rosewill

Over Current/Voltage/Temperature/Power Protection,
Under Voltage Protection and Short Circuit Protection

rosewill

TUV, FCC, CE Certificated

rosewill

rosewill

Extra-long cables support full size gaming chassis

rosewill

Three-Year Warranty

SPECIFICATIONS

Model: Glacier 600M

AC INPUT 100 ~ 240VAC | 10A-5A | 50/60Hz
DC OUTPUT
+3.3V +5V +12V -12V +5VSB
20A 20A 45A 0.3A 2.5A
100W 540W 3.6W 12.5W
TOTAL POWER 600W

CONNECTORS

rosewill
20 + 4-Pin
MainBoard
x 1
rosewill
+ 12V EPS
4 + 4-Pin
Connector
x 1
rosewill
6 + 2-Pin
PCI-E
Connector
x 2
rosewill
S-ATA
Connector
x 6
rosewill
4-Pin Molex
Peripheral
Connector
x 4
rosewill
4-Pin Floppy
Connector
x 1

PACKAGE CONTENTS

  • Power Supply Unit
  • Modular Cable Set
  • User Manual
  • AC Power Cord
  • Three Cable Ties
  • Four Mounting Screws
Brand

Rosewill

Model

Glacier 600M

Type

ATX 12V v2.3 & EPS 12V v2.92

Maximum Power

600W

Fans

1 x Silent 135mm Fan

PFC

Active

Main Connector

20+4Pin

+12V Rails

Single

PCI-Express Connector

2 x 6+2-Pin

SATA Power Connector

6

SLI

Yes

CrossFire

CrossFire Ready

Modular

Modular

Efficiency

> 85%

Energy-Efficient

80 PLUS BRONZE Certified

Over Voltage Protection

Yes

Input Voltage

100 – 240 V

Input Frequency Range

50/60 Hz

Input Current

10 – 5A

Output

+3.3V @ 20A, +5V @ 20A, +12V @ 45A, -12V @ 0.3A, +5VSB @ 2.5A

MTBF

>100,000 Hours

Approvals

TUV, cTUVus, CE, FCC certified

Dimensions

3.19" x 5.91" x 6.22"

Max PSU Length

158 mm

Connectors

Fixed Cable:
1 x 20+4-Pin Main Connector
1 x 4+4-Pin ATX12V / EPS12V Connector
Modular Cable:
2 x 6+2-Pin PCI-E Connector
6 x 5-Pin SATA Connector
4 x 4-Pin Peripheral Connector
1 x 4-Pin Floppy Connector

Features

80 PLUS BRONZE Certified, Continuous 600W at 40 Degrees Celsius

Active-PFC with auto AC-input voltage adjustment (110 – 240V)

Single strong 12V rail – ideal for gaming system

SLI & CrossFire ready – 2 x 6+2-Pin connector

Silent 135mm fan with auto fan speed control

Aero-diversion design on the fan further reduces the temperature inside of PSU

Over Current / Voltage / Power Protection, Under Voltage Protection, and Short Circuit Protection provide maximum safety to your critical system components
