///RSV-R27LX -Section Ball-Bearing Sliding Rail Kit for Rackmount Chassis

RSV-R27LX -Section Ball-Bearing Sliding Rail Kit for Rackmount Chassis

SKU: 16-132-069 Category:

Description

Rosewill Sliding Chassis Rail Kit
RSV-R27LX

26″ 3-Section Ball-Bearing Sliding Rail Kit
For Server Chassis / Server Case / Rackmount Case
GVision V15DX Series 15inch Resistive Touch Screen Monitor

Rosewill Sliding Chassis Rail Kit  RSV-R27LX

Perfect Server Rack Rail for Server Case

Rosewill RSV-R27LX is suitable for server chassis between 2U to 5U height, and be able to load rating up to 100.00 lbs. It’s a ball bearing sliding rail kit for rack-mount chassis and it also provides silent and smooth travel with server case operation. Special design for easy chassis removal, more tapped screw holes on outer member, easy-mount, quick-disconnect design.

Rosewill Sliding Chassis Rail Kit  RSV-R27LX

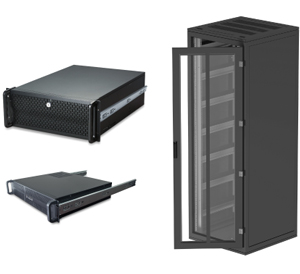

Compatible with All Server Chassis

Rosewill RSV-R27LX is capable to work with all server chassis and makes you to draw out your server chassis out of the server rack easily. Users can use the server rail kit onto different server chassis including all Rosewill server cases (RSV-R4000, RSV-L4000, RSV-L4500, RSV-L4412, RSV-Z2700, RSV-Z2600).

Rosewill Sliding Chassis Rail Kit  RSV-R27LX

Chrome Zinc plating with ROHS Compliant

With zinc plating, the server rail kit can deter the zinc from white rusting and maintain the perfect finishing after long time operation. The Rail Kit (RSV-R27LX) is also fully complied with EU RoHS compliance to sustain our environment.

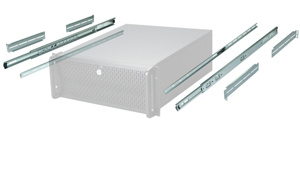

How to Install
Rosewill Sliding Chassis Rail Kit  RSV-R27LX

1. Install the center rails to the server chassis (keep the center rail 1~2 inches from the handles)

Rosewill Sliding Chassis Rail Kit  RSV-R27LX

2. Install the L-brackets to the server rack and align and slide the outer rails into L-brackets.

Rosewill Sliding Chassis Rail Kit  RSV-R27LX

3. Align and slide the server chassis with center rails onto the slide rail on the rack

Rosewill Sliding Chassis Rail Kit  RSV-R27LX

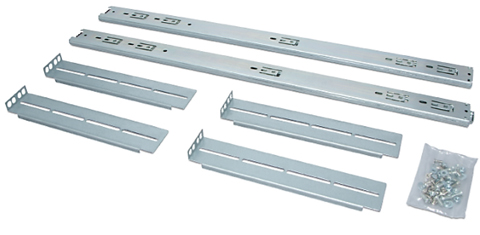

Item Details Photo
L-bracket *4 Rosewill Sliding Chassis Rail Kit  RSV-R27LX
Slide Rail *2 Rosewill Sliding Chassis Rail Kit  RSV-R27LX
Screw pack 1 Screw #6-32 *8 pcs
Rosewill Sliding Chassis Rail Kit  RSV-R27LX
Screw pack 2 M4 Screw *20 pcs
Rosewill Sliding Chassis Rail Kit  RSV-R27LX
M4 Washer *12 pcs
Rosewill Sliding Chassis Rail Kit  RSV-R27LX
M4 Nut *12 pcs
Rosewill Sliding Chassis Rail Kit  RSV-R27LX
Screw pack 3 M5 Screw *8 pcs
Rosewill Sliding Chassis Rail Kit  RSV-R27LX
M5 Washer *8 pcs
Rosewill Sliding Chassis Rail Kit  RSV-R27LX
M5 Nut *8 pcs
Rosewill Sliding Chassis Rail Kit  RSV-R27LX

• The accessory bag may contain extra screws, washers and nuts.

Additional information

Model Number

RSV-R27LX

Customer Service

Customer Service and Technical Support

Toll Free: 1 (800) 575-9885
FAX: (626) 271-9504

Customer Service and Technical Support Hours: Monday – Friday, 8:00 AM – 5:00 PM (PST)

Support Email: techsupport@rosewill.com
Warranty and RMA Email: rma@rosewill.com

To register your product for warranty, please click on Warranty Registration.

Downloads

User Manuals

16-132-069_RSV-R27LX_D_User_Manual.pdf
