///SPECTRA D100 ATX Mid Tower

SPECTRA D100 ATX Mid Tower

  • 10 LED Modes: The SPECTRA D100 comes equipped with 4 pre-installed dual ring RGB 120mm case fans (3 front, 1 rear) capable of 7 static colors, 2 backlight effects and 1 rainbow RGB mode, conveniently controlled via top I/O LED button
  • Front Mesh Design: Polygon honeycomb mesh panel in front not only uplifts case aesthetics but also increases case ventilation, promoting great airflow that keeps your system temperatures low and components cool
  • Builder-Friendly Layout: A simple, straightforward case interior makes PC building quick and easy for all, including first-time PC builders, enthusiasts, pro gamers and seasoned DIYers who can appreciate optional vertical GPU card mount with support block and PSU shroud
  • AIO Liquid Cooler Support: Maximize cooling with optional 360mm liquid cooling radiator in front, optional 240mm radiator on top ideal with low profile memory and optional 170mm tall CPU cooler
Buy now
SKU: 11-147-297 Category:
HONEYCOMB MESH PANEL
Front mesh design increases case ventilation and promotes greater airflow while elevating overall aesthetics for the best of both function and style.

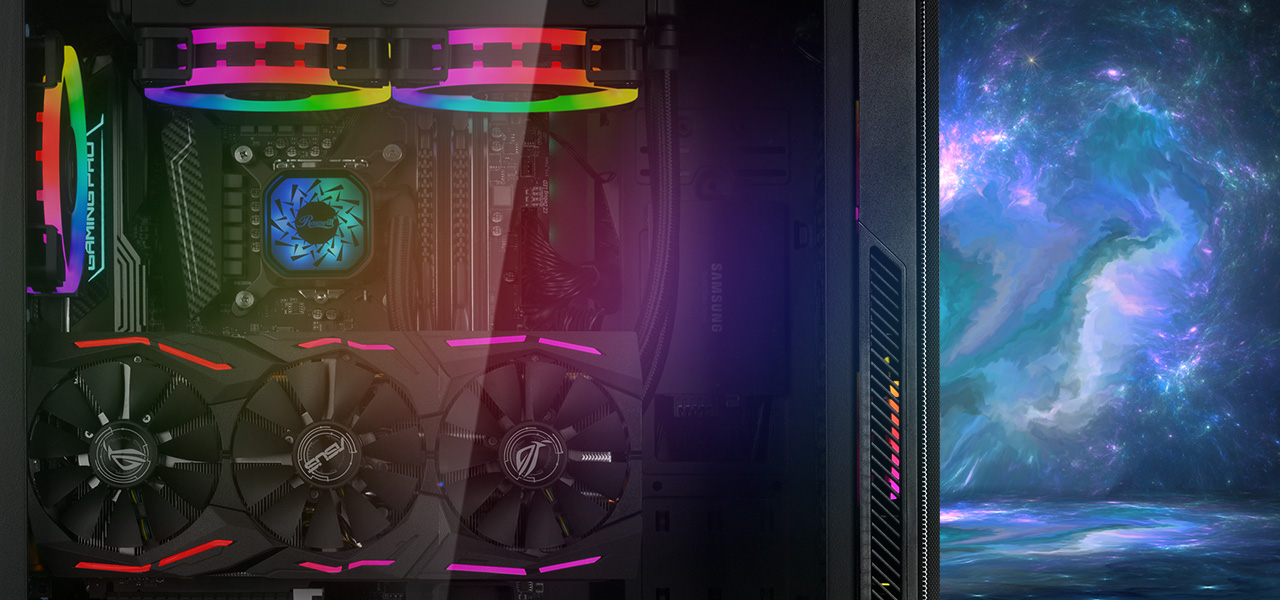

RGB READY
Equipped with 4 dual ring 120mm RGB fans that can cycle through 10 pre-programmed LED modes to match your rig with other hardware at the switch of a top I/O button; no software or remote needed.
ADDITIONAL FEATURES

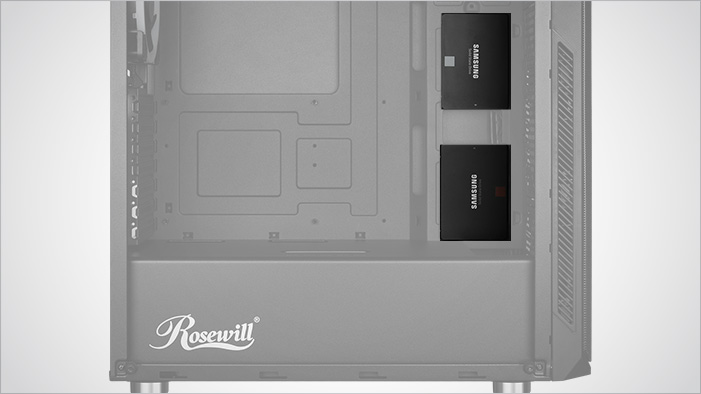

FRONT STORAGE
Install up to two drives on the right mount side of the case.
REAR STORAGE
Install either two HDD or SSD on the drive cage.

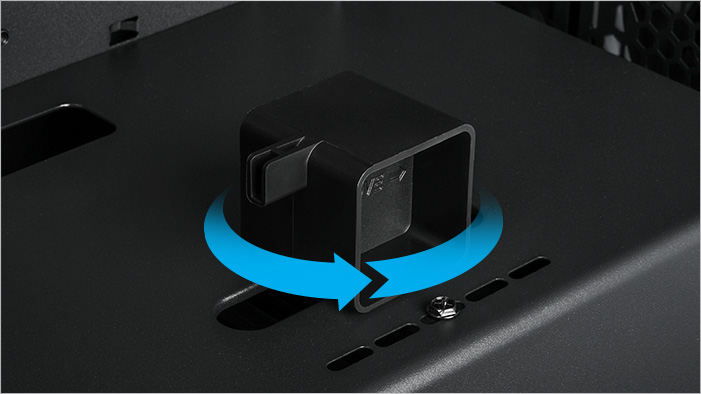

GPU BLOCK
Included GPU support bracket prevents larger size GPU cards from sagging when vertically mounted.

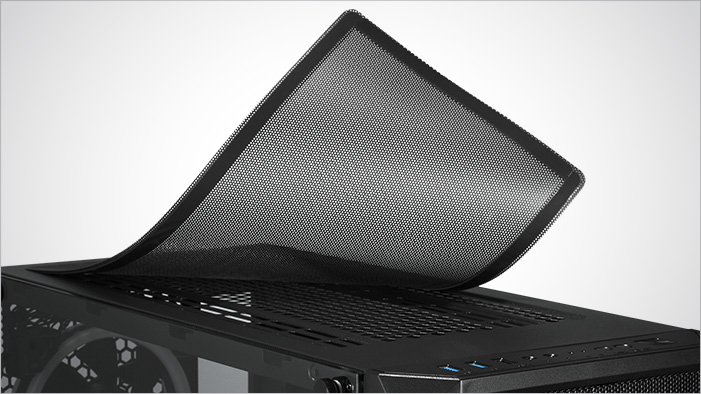

TOP DUST FILTER
Magnetic dust filter on top protectively stays in place to minimize particle buildup and is easy to remove for cleaning.

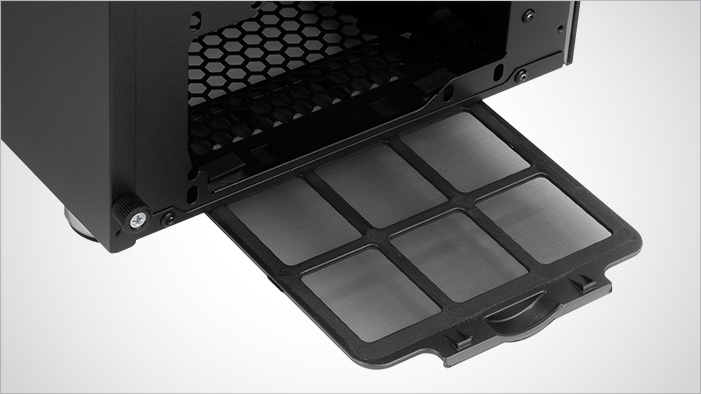

PSU DUST FILTER
Removable dust filter below PSU mount makes it easy to clean out excess dust from the bottom of the computer case.

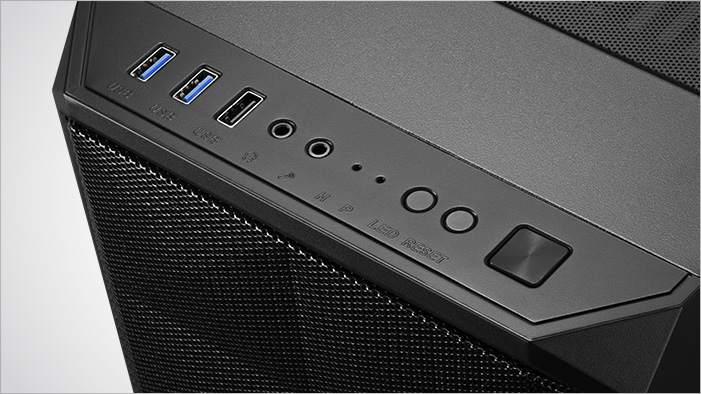

TOP I/O PANEL
Convenient top I/O with two USB 3.0 ports, one USB 2.0 port, audio-in and mic-out jacks for connecting numerous peripherals and devices.
Brand

Rosewill

Model

SPECTRA D100

Case Type

Mid Tower

Color

Black

Case Material

Steel / Plastic / Tempered Glass

With Power Supply

No

Motherboard Compatibility

Mini-ITX, ITX, Micro ATX, ATX

Side Panel Window

Yes

Internal 3.5" Drive Bays

2

Internal 2.5" Drive Bays

2

Expansion Slots

2, 7

Front Ports

1 x USB 2.0 / 2 x USB 3.0 / Audio

Fan Options

Front: 3 x 120mm RGB LED fan (pre-installed)

Top: 2 x 120mm / 2 x 140mm fan (optional)

Rear-1 x 120mm RGB LED fan (pre-installed)

Radiator Options

Supports up to 360 mm Long Liquid-cooling Radiator in the Front, and 240 mm long Liquid-cooling Radiator on the Top

Max GPU Length Allowance

350 mm

Max CPU Cooler Height Allowance

170 mm

Max PSU Length

220 mm

Dimensions (H x W x D)

18.50" x 8.27" x 17.32"

Weight

15.43 lbs.

Features

NOTICE: Please make sure your motherboard is equipped with on-board USB 3.0 socket before purchasing

Top I/O Ports: 2 x USB 3.0, 1 x USB 2.0, Audio Out, Mic In, LED Modes

120 mm Fans:
3 x Front RGB LED (pre-installed)
2 x Top (optional)
1 x Rear RGB LED (pre-installed)

140 mm Fans:
2 x Front (optional)
2 x Top (optional)
1 x Rear (optional)

Water Cooling Radiator:
360 mm in Front (optional)
240 mm on Top (optional; only if Low Profile RAM is installed)
120 mm in Rear (optional)

Supports Vertical VGA Installation / 350 mm long VGA Card

Includes GPU Brace Support Block to Prevent Video Card Sag

Supports 170 mm high CPU Cooler

Supports 220 mm max length Power Supply Unit

PSU Shroud / Clean Cable Management

Tempered Glass Side Panel

Mesh Front Panel

Top and Bottom Dust Filters

Customer Service and Technical Support

Toll Free: 1 (800) 575-9885
FAX: (626) 271-9504

Customer Service and Technical Support Hours: Monday – Friday, 8:00 AM – 5:00 PM (PST)

Support Email: techsupport@rosewill.com
Warranty and RMA Email: rma@rosewill.com

To register your product for warranty, please click on Warranty Registration.

Icon

SPECTRA_D100_UserManual_A.pdf 5.35 MB 30 downloads

...
