///SPECTRA X-Blue ATX Mid Tower

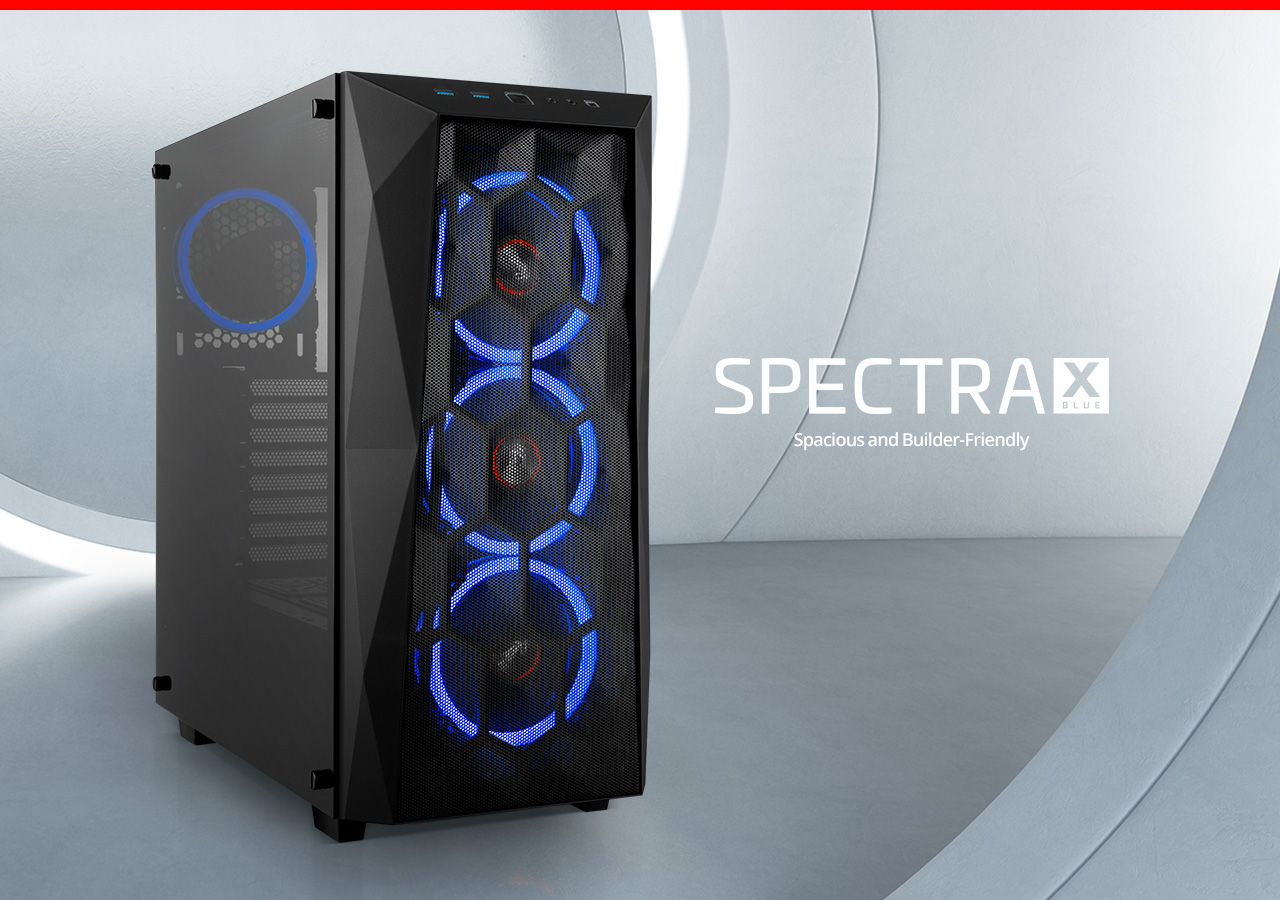

SPECTRA X-Blue ATX Mid Tower

  • Front Mesh Design: Distinct honeycomb mesh panel in front boosts case aesthetics, increases ventilation and improves airflow to keep your system temperatures low and components cool
  • Spacious Interior: This mid tower case boasts a roomy layout with 8 expansion slots for video cards, add-on cards and performance upgrades
  • AIO Liquid Cooler Support: Maximize all-around AIO cooling potential with optional 360mm radiator in front, optional 280mm radiator on top and optional 120mm radiator in rear
Buy now
SKU: 11-147-301 Category:
BUILT FOR UPGRADES
With a spacious internal layout, eight expansion slots and massive cooling potential, this PC case can handle your first build and your future upgrades.
ADDITIONAL FEATURES

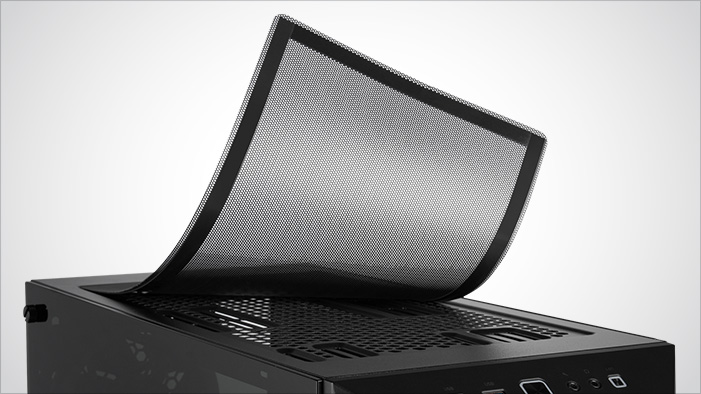

LARGE TOP DUST FILTER
The dust filter on top protectively stays in place to minimize particle buildup and is easy to remove for cleaning.

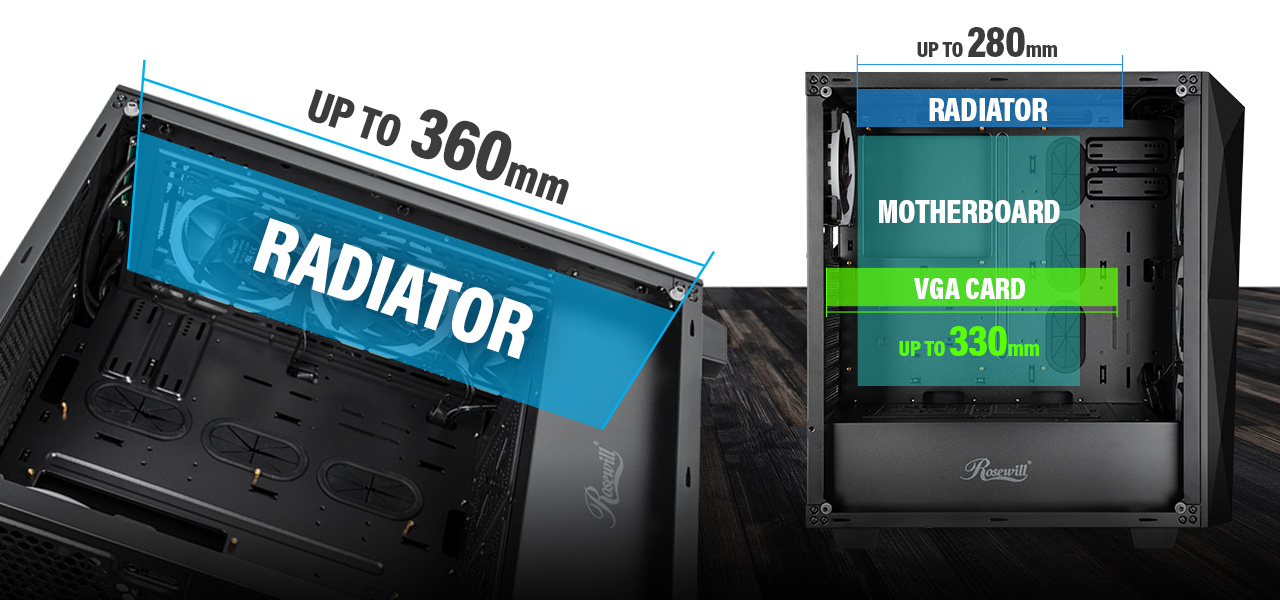

RADIATOR SUPPORT
Front mesh panels promote superb air intake and proper case ventilation, along with further optimized cooling from optional installation of 360mm radiator in front, 280mm on top and 120mm in the rear.

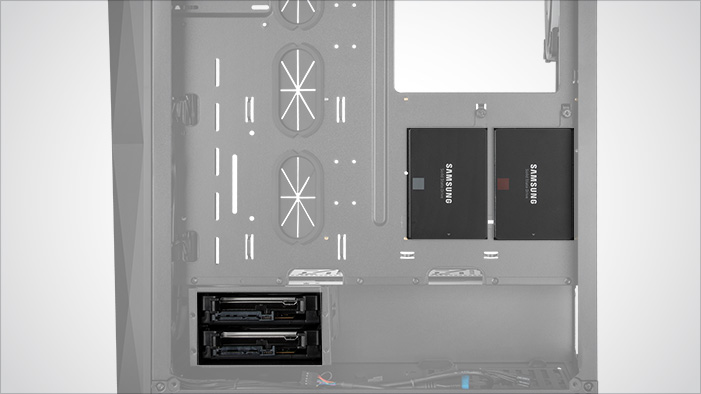

MORE FOR STORAGE
Supports the installation of two HDD/SSD on top of the PSU shroud, one drive cage for two HDD/SSD, plus an additional two drive slots for SSD.
Weight 17.20 lbs
Dimensions 17.56 x 8.74 x 19.02 in
Case Type

Mid Tower

Case Material

Steel, Plastic, Tempered Glass

Motherboard Compatibility

ATX, Micro ATX, Mini-ITX

With Power Supply

No

Power Supply Mounted

Bottom

Side Panel Window

Yes

LED Color

Blue

Internal 3.5" Drive Bays

5 (1)

Internal 2.5" Drive Bays

3 (7)

Expansion Slots

8

Front Ports

2 x USB 3.0, Audio In & Out

Fan Options

Front: 3 x 120mm or 2 x 140mm fan (3 x 120mm Blue LED fan pre-installed)

Top: 2 x 120mm or 2 x 140mm fan (optional)

Rear: 1 x 120mm Blue LED fan (pre-installed)

Radiator Options

Front: Up to 360mm

Top: Up to 280mm

Max GPU Length Allowance

330 mm

Max CPU Cooler Height Allowance

170 mm

Max PSU Length Allowance

220 mm

Features

NOTICE: Please make sure your motherboard is equipped with on-board USB 3.0 socket before purchasing

Top I/O Panel: 2 x USB 3.0, Audio Out, Mic In, Reset

120 mm Fans:
– 3 x Front Blue LED (pre-installed)
– 2 x Top (optional)
– 1 x *Rear Blue LED (pre-installed)

*Rear case fan 3-pin connector must plug directly to the motherboard; Front fans with fan splitter plug directly to the PSU via molex connector

140 mm Fans:
– 2 x Front (optional)
– 2 x Top (optional)

Water Cooling Radiator:
– 360 mm in Front (optional)
– 280 mm on Top (optional)
– 120 mm in Rear (optional)

Supports 330 mm long VGA Card

Supports 170 mm high CPU Cooler

Supports 220 mm max length PSU

Bottom Mounted PSU and HDD/SSD Shroud

28 mm Panel for Organized Cables/Cords/Wires

Mesh Front Panel

Full Size Tempered Glass Side Panel Window

Top and Bottom Dust Filters

Customer Service and Technical Support

Toll Free: 1 (800) 575-9885
FAX: (626) 271-9504

Customer Service and Technical Support Hours: Monday – Friday, 8:00 AM – 5:00 PM (PST)

Support Email: techsupport@rosewill.com
Warranty and RMA Email: rma@rosewill.com

To register your product for warranty, please click on Warranty Registration.

Icon

SPECTRA X Series User Manual 2.46 MB 35 downloads

...
