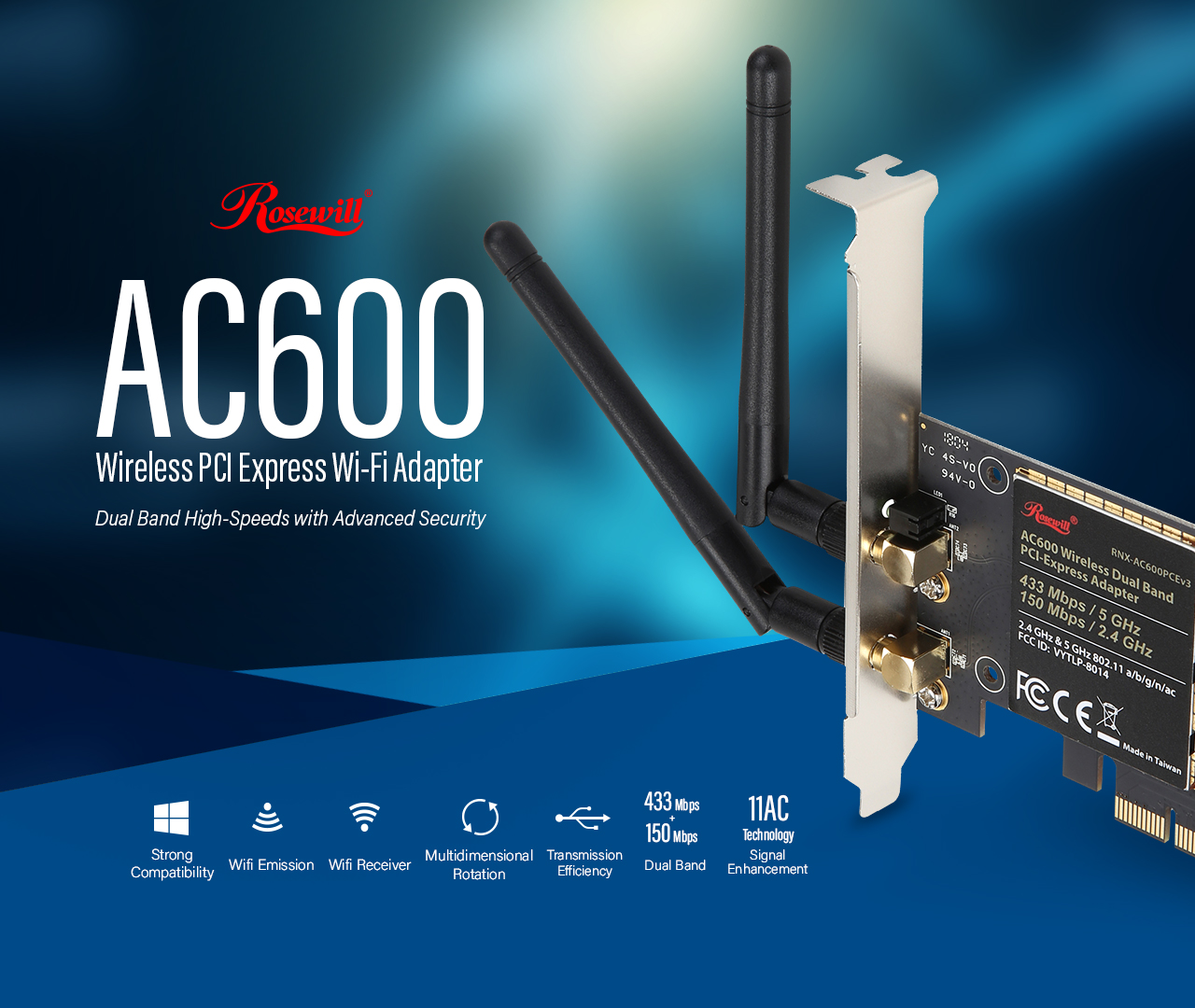

///RNX-AC600PCEv3 Dual Band Wi-Fi Adapter

RNX-AC600PCEv3 Dual Band Wi-Fi Adapter

  • Up to 433 Mbps + 150 Mbps wireless data speed: Achieves a maximum theoretical throughput of up to 150 Mbps over 2.4 GHz and up to 433 Mbps over 5.0 GHz. Supports dual band connectivity. Seamlessly compatible with all 802.11a/b/g/n/ac products.
  • Dual Band Connectivity: Experience smoother video streaming and online gaming by choosing the clearer 5.0 GHz band for wireless connections and basic internet need like online chat and email at 2.4 GHz band
  • Distributes heat away from core components to improve reliability and performance of the PCIE wireless network adapter. Supports Advanced Security: 64 / 128 WEP, WPA / WPA2, WPA-PSK / WPA2-PSK (TKIP / AES).
  • Wider Wireless Coverage & Beamforming Technology: 2 x external antennas provide wilder coverage for Wi-Fi network and bundled utility provides quick & hassle-free installation. Connect with stronger, more reliable wireless connections for desktops / PC / computers.
  • High Speed Wi-Fi Adapter to support Windows XP / Vista / 7 / 8 / 8.1 / 10.
Buy now
SKU: 33-166-117 Category:
A Wi-Fi Adapter Card For All Your Needs
Lag-Free Connection

Stream smoother HD videos and play lag-free online games via clearer 5.0 GHz band, or effortlessly chat online and email at 2.4 GHz band.

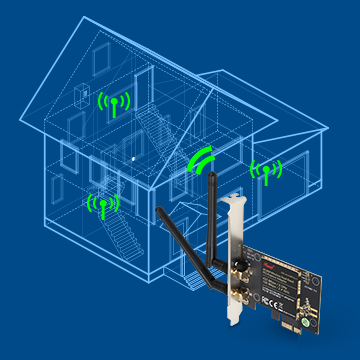

Wide Range Detachable Antennas

Experience reliable, wider range wireless connection from 2 high gain beamforming technology detachable antennas.

Advanced Wireless Security

Advanced WPA/WPA2 encryptions created by the Wi-Fi Alliance promote interoperability and security for WLAN, which effectively and efficiently protect users’ wireless environment.

Easy to Use
Compatibility

High Speed Wi-Fi Adapter supports Windows XP, Vista, 7, 8, 8.1 and 10.

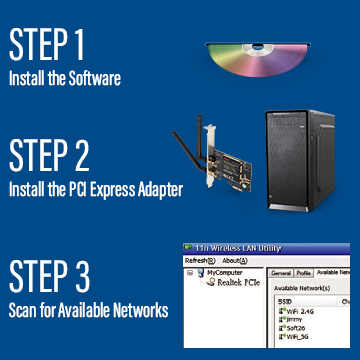

Quick Installation

Includes the necessary components to provide a hassle-free installation.

Easy Setup

Connect with stronger, more reliable wireless connections on desktops, laptops, tablets and more.

Brand

Rosewill

Model

RNX-AC600PCEv3

Standards

IEEE 802.11b; IEEE 802.11g; IEEE 802.11n; IEEE 802.11ac

Wireless Data Rates

802.11b: 1/2/5.5/11 Mbps
802.11g: 6/9/12/18/24/36/48/54 Mbps
802.11n: 150 Mbps (2.4 GHz)
802.11ac: 433 Mbps (5 GHz)

Security

64 / 128-bit WEP, WPA / WPA2 (TKIP / AES 802.1x)

Interface

PCI Express

Modulation

11b: CCK
11g: CCK / OFDM / BPSK / QPSK / 16-QAM / 64-QAM
11n: OFDM / BPSK / QPSK / 16-QAM / 64-QAM
11ac: OFDM / BPSK / QPSK / 16-QAM / 64-QAM / 256-QAM

Transmitted Power

<20 dBm (EIRP)

Antenna

External Antenna, 2, 3

System Requirements

Windows XP / 7 / 8 / 8.1 / 10 (32 / 64-bit); Windows Server 2012

Features

802.11ac, Compatible with 802.11 a/b/g/n

Up to 150 Mbps at 2.4 GHz

Up to 433 Mbps at 5.0 GHz

Dual Band Connections for Lag-Free HD Video Streaming and Gaming

WPA / WPA2 Encryptions – Advanced Security

PCI Express Interface

Windows 10 Compatibility

Dimensions

0.90" x 4.80" x 3.78"

Temperature

Operating Temperature: 0 ~ 40 degree Celsius (32 ~ 104 degree Fahrenheit)
Storage Temperature: -10 ~ 70 degree Celsius (14 ~ 158 degree Fahrenheit)

Humidity

Operating Humidity: 10% ~ 90% non-condensing
Storage Humidity: 5% ~ 95% non-condensing

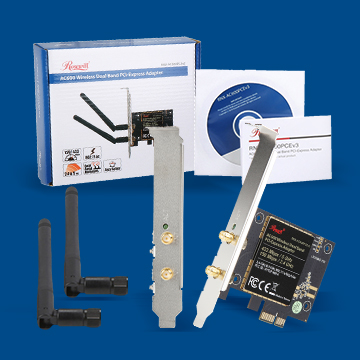

Package Contents

1 x RNX-AC600PCEv3 AC600 Wireless Dual Band PCI-Express Adapter
2 x 3 dBi Detachable Antenna
1 x Low Profile Bracket
1 x Resource CD
1 x Quick Installation Guide
