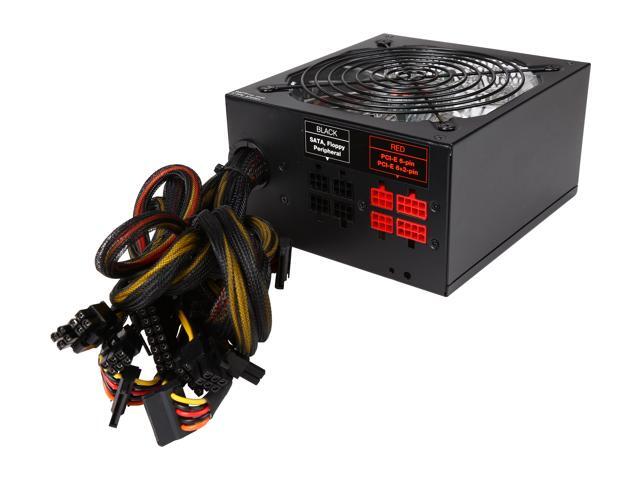

Rosewill BRONZE Series, RBR1000-MS, 1000W Semi-Modular Power Supply, 80 PLUS BRONZE, Blue LED Dual-Ball-Bearing Fan, ATX 12V v2.3 / EPS 12V, SLI & CrossFire Ready, Black
$199.99
Shipping Information
Additional fees may apply for shipments to APO/FPO, AK, HI, PR. and large item
shipping is not available to AA, AE, AP, HI, AK, PR and some unique locations,
such as specific islands.
FREE SHIPPING
Shipping Information
Additional fees may apply for shipments to APO/FPO, AK, HI, PR. and large item
shipping is not available to AA, AE, AP, HI, AK, PR and some unique locations,
such as specific islands.
Ships from United States.
Most customers receive within
6-8
days .
- 1000W PSU
- ATX12V v2.31 / EPS12V 2.92
- 80 PLUS BRONZE Certified
- Semi-Modular Design
- Supports both Intel & AMD Systems
- 1 x 135mm Dual-ball-bearing Blue LED Fan
QUANTITY
OUT OF STOCK
Overview
Specs
Reviews
LEARN MORE ABOUT THE ROSEWILL RBR1000-MS
General
Brand
Rosewill
Series
BRONZE series
Model
RBR1000-MS
Details
Type
ATX12V v2.31 / EPS12V 2.92
Maximum Power
1000 W
Fans
1 x 135mm Blue LED Dual-ball-bearing
PFC
Active
Main Connector
20+4Pin
+12V Rails
Single
PCI-Express Connector
3 x 6-Pin, 3 x 6+2-Pin
SATA Power Connector
12
SLI
SLI Ready
CrossFire
CrossFire Ready
Max PSU Length
160 mm
Modular
Semi-Modular
Power Good Signal
100-500ms
Hold-up Time
16ms min.
Efficiency
> 82%, up to 87%
Energy-Efficient
80 PLUS BRONZE Certified
Over Voltage Protection
Yes
Input Voltage
100 - 240 V
Input Frequency Range
50/60 Hz
Input Current
15 A

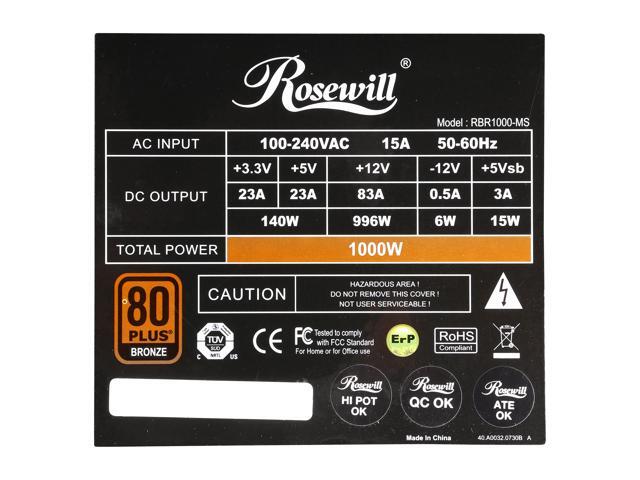

Output
+3.3V@23A, +5V@23A, +12V@83A, -12V@0.5A, +5VSB@3A
MTBF
>100,000 Hours
Approvals
cTUVus, CE, FCC certified

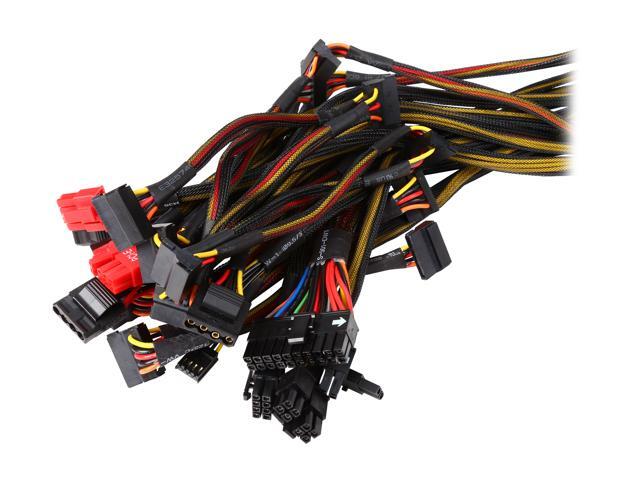

Connectors
Fixed Cable:
1 x 20+4-Pin Main Connector
1 x 4+4-Pin ATX12V / EPS12V Connector
1 x 8-Pin EPS12V Connector
1 x 6-Pin PCI-E Connector
1 x 6+2-Pin PCI-E Connector
4 x 15-Pin SATA Connector
Modular Cable:
2 x 6-Pin PCI-E Connector
2 x 6+2-Pin PCI-E Connector
8 x 15-Pin SATA Connector
8 x 4-Pin Peripheral Connector
2 x 4-Pin Floppy Connector
Features
Features
Japanese capacitors be adopted in the power supply
Supports ATX12V v2.3 & EPS12V standards
Supports both Intel and AMD Systems
Single 12V rail provides independent reliable power
Active power Factor Correction (PFC) provides clean and reliable power to your system
Universal AC input 90 - 264V automatically scans and detects the correct voltage
Modular Cable Design
SLI Ready - 3 x 6-Pin & 3 x 6+2-Pin Connectors
12V Output 996W (83A)
3.3V, 5V Combined Output 140W
3.3V, 5V, 12V Combined Output 1000W
1 x 135mm Dual-ball-bearing Fan with Auto Fan Speed Control for better silence
Black Coating Housing
Mesh sleeving on all cable for easier cable routing and better ventilation
Over Temperature / Current / Voltage / Power Protection, Under Voltage Protection, and Short Circuit Protection provide maximum safety to your critical system components
Dimension & Weight

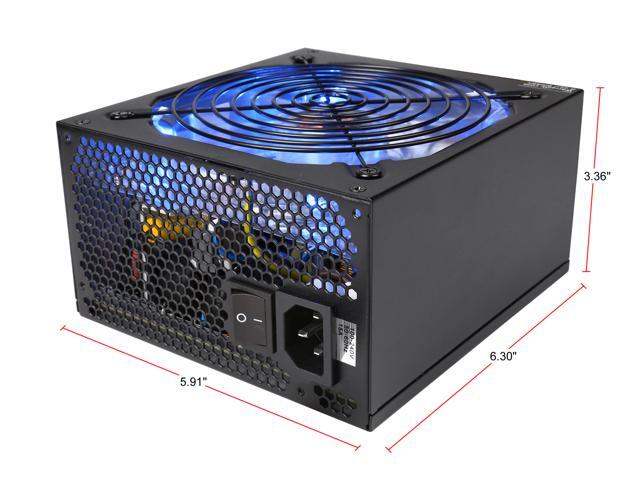

Dimensions
3.39" x 5.91" x 6.30"
Weight
6.23 lbs.
Additional Information
Date First Available
December 07, 2021
