///CULLINAN V ATX Mid Tower

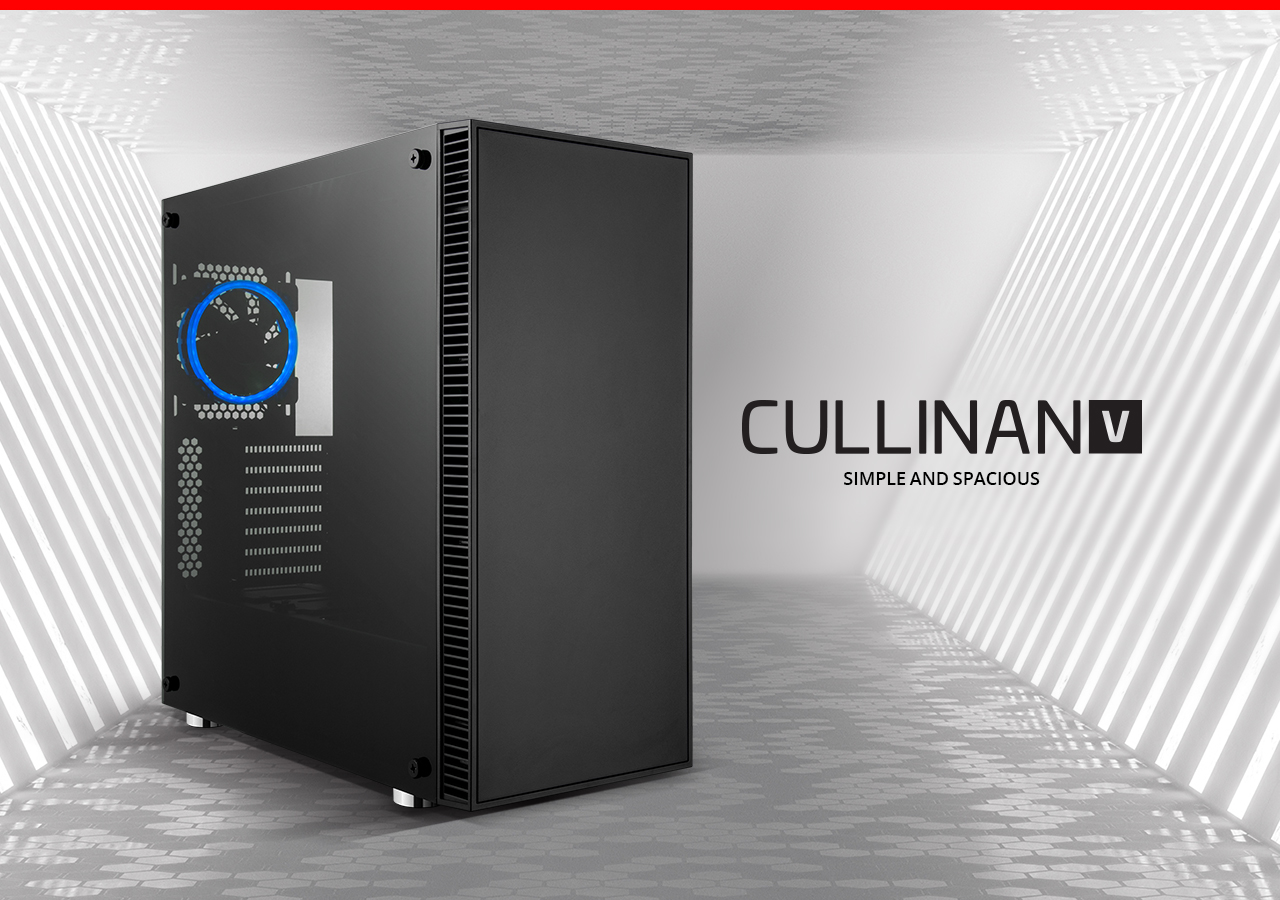

CULLINAN V ATX Mid Tower

  • Spacious Chassis: Build inside an open internal layout with plenty of room for expansion and upgrades; great for performance systems and ultimate custom gaming PCs
  • E-ATX Compatible: Supports Extended ATX motherboards at 12 x 10.7in larger form factor with more functionality, ATX and Micro ATX
  • Front Panel: Simple and smooth front panel with side vents that promote airflow and cool case temperatures; further optimize ventilation with top I/O fan speed control
Buy now
SKU: 11-147-303 Category:
BUILD, MOD, UPGRADE

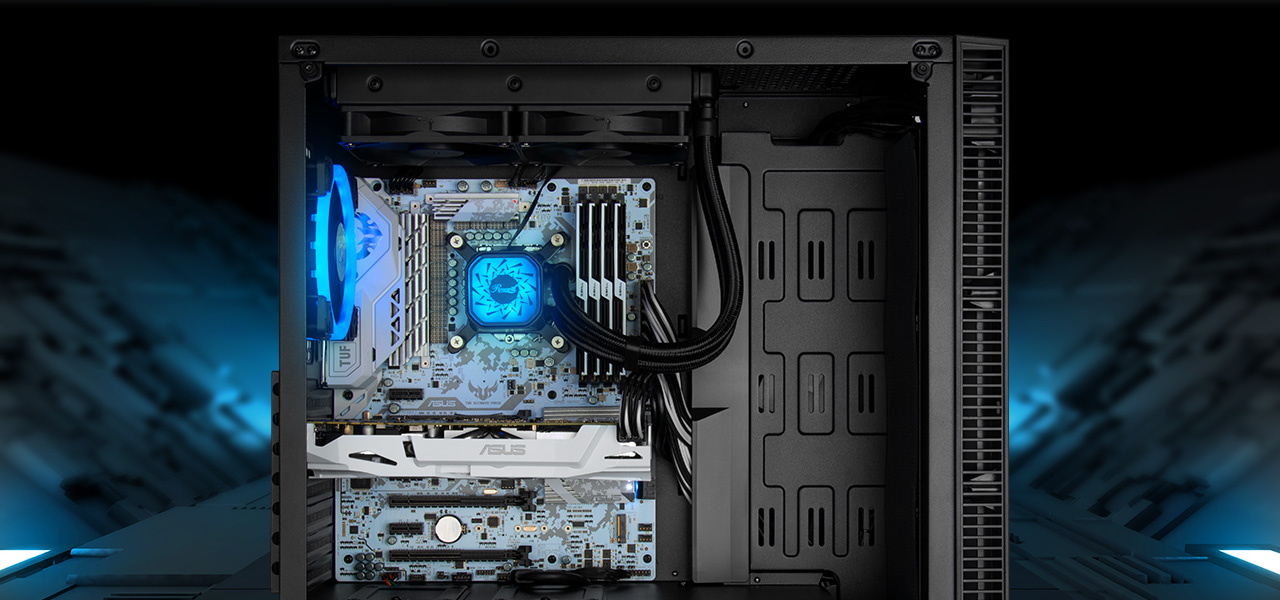

The CULLINAN V computer case offers versatility for every stage of your PC build, from the basics to modifications to performance upgrades and expansion.
ADDITIONAL FEATURES

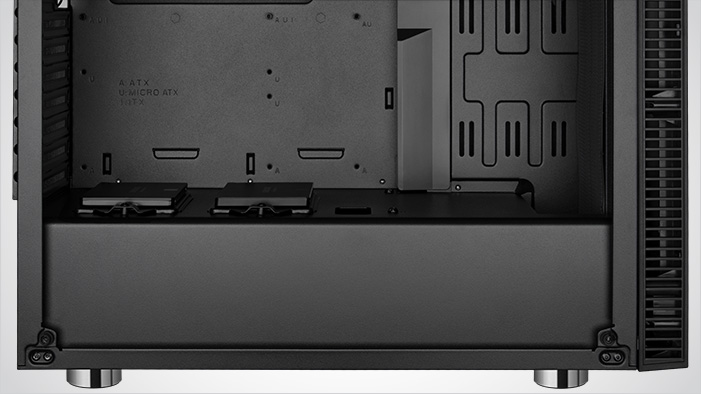

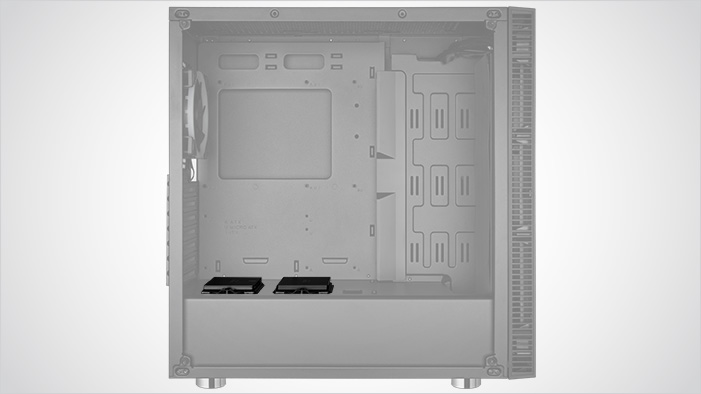

LEFT SIDE STORAGE
Supports the installation of two SSD on top of the PSU shroud.

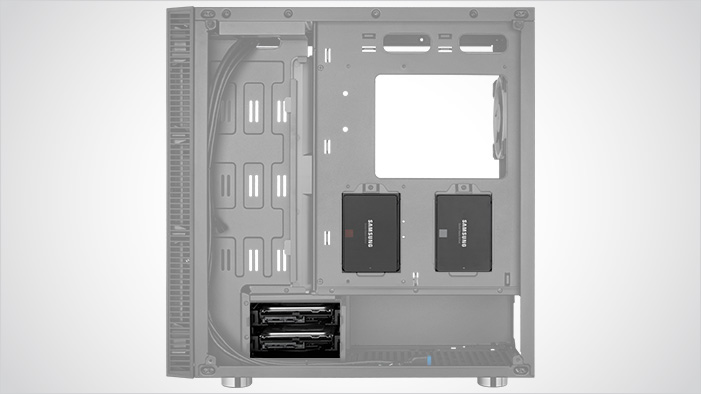

RIGHT SIDE STORAGE
Install either two HDD or SSD on the cage, plus an additional two SSD with the included drive slots.

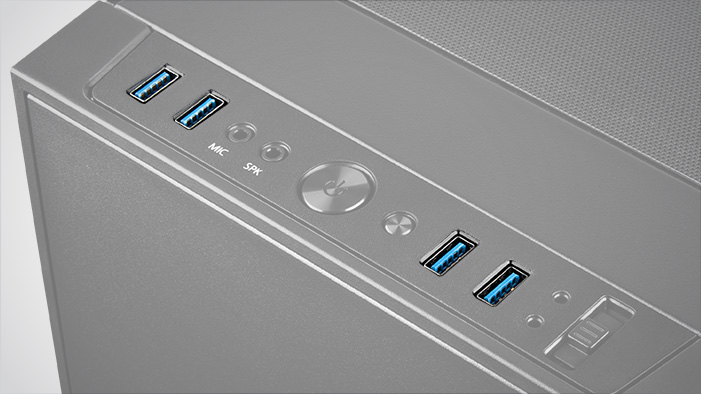

SUPERSPEED USB
Top panel is equipped with four SuperSpeed USB 3.0 ports that transfer data up to 5 Gbps, nearly ten times faster than USB 2.0. Plus an HD audio jack, mic jack and fan speed control to switch between high/low/stop.
REMOVABLE DUST FILTER
The dust filter on top of the case protectively stays in place to minimize particle buildup and is easy to remove for cleaning.

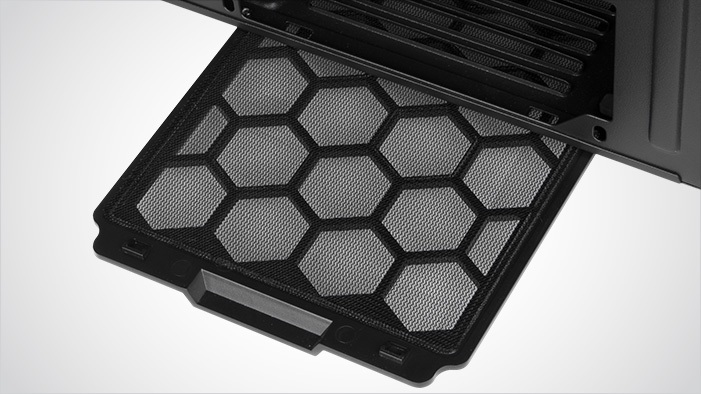

BOTTOM DUST FILTER
The removable dust filter below the PSU mount makes it easy to clean out any excess dust from the bottom of the computer case.
PSU SHROUD
Keep your PC looking clean by tucking away power supply cables and keeping the drive cage covered.
Weight 22.71 lbs
Dimensions 18.66 x 8.78 x 19.30 in
Series

CULLINAN V

Case Type

Mid Tower

Case Material

Steel, Plastic, Tempered Glass

With Power Supply

No

Power Supply Mounted

Bottom

Motherboard Compatibility

Extended ATX (E-ATX), ATX, Micro ATX

Side Panel Window

Yes

LED Color

Blue

Internal 3.5" Drive Bays

2 (0)

Internal 2.5" Drive Bays

4 (6)

Expansion Slots

7

Front Ports

4 x USB 3.0, Audio In & Out, Fan Speed Control

Fan Options

Front: 3 x 120mm (3 x 120mm fan Pre-installed) or 3 x 140mm fan

Top: 3 x 120mm or 2 x 140mm fan

Rear: 1 x 120mm fan (1 x 120mm Blue Double Ring fan Pre-installed)

Radiator Options

Front: Up to 360mm

Top: Up to 280mm

Rear: Up to 120mm

Max GPU Length Allowance

400 mm

Max CPU Cooler Height Allowance

170 mm

Max PSU Length Allowance

250 mm

Features

NOTICE: Please make sure your motherboard is equipped with 2 x USB 3.0 headers before purchasing

Motherboard Support: E-ATX (12 x 10.7 in), ATX, MicroATX

Top I/O Ports: 4 x USB 3.0, HD Audio Out, Mic In, Fan Speed Control, Reset

120 mm Fans:
– 3 x Front Black (pre-installed)
– 3 x Top (optional)
– 1 x Rear Blue LED (pre-installed)

140 mm Fans:
– 3 x Front (optional)
– 2 x Top (optional)
– 1 x Rear (optional)

Water Cooling Radiator:
– 360 mm in Front (optional)
– 280 mm on Top (optional)
– 120 mm in Rear (optional)

Supports up to 400 mm long VGA Card

Supports up to 170 mm tall CPU Cooler

Supports max. 250 mm long PSU

Bottom Mounted PSU and HDD/SSD Shroud

18 to 40 mm Panels for Organized Cables/Cords/Wires

Dark Tinted Tempered Glass Side Panel Window

Front, Top and Bottom Dust Filters

Customer Service and Technical Support

Toll Free: 1 (800) 575-9885
FAX: (626) 271-9504

Customer Service and Technical Support Hours: Monday – Friday, 8:00 AM – 5:00 PM (PST)

Support Email: techsupport@rosewill.com
Warranty and RMA Email: rma@rosewill.com

To register your product for warranty, please click on Warranty Registration.

Icon

CULLINAN V Series User Manual 8.02 MB 336 downloads

...
