PRISM S-BLACK ATX Mid Tower

  • Angular Front Panel: Elegant, clean and unique black steel angles combined with a slightly smoked crystal clear tempered glass side panel come together to create a gaming computer case with the perfect balance of polished asymmetry
  • Bottom Air Intake: This mid tower ATX case features pre-installed bottom intake fans that draw cool air up toward PSU on top while lowering GPU and motherboard temperatures

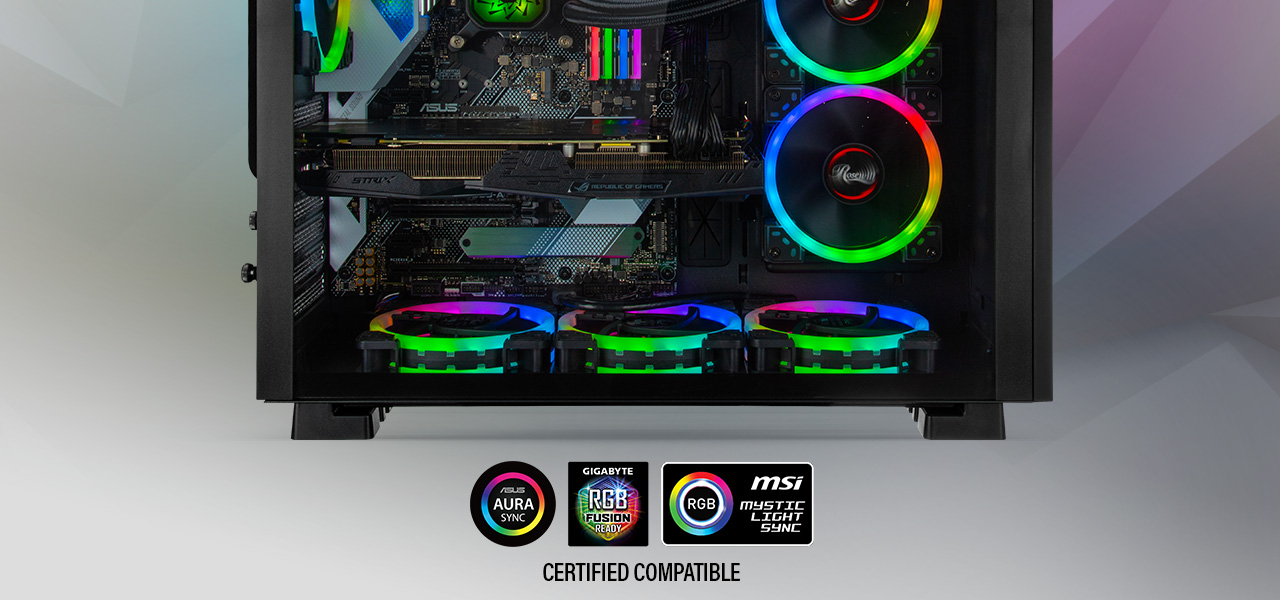

  • RGB Software Sync: Compatible with ASUS Aura Sync, MSI Mystic Light Sync and GIGABYTE RGB Fusion Ready to adjust backlights, or use the LED switch to change colors and effects
  • Top PSU Shroud: Tuck away HDD/SSD and power supply cables within the top PSU shroud for clean cable management and increased airflow
  • AIO Liquid Cooler Support: Maximize cooling with optional bottom 360mm liquid cooling radiator, optional vertically mounted 240mm radiator and optional 160mm tall CPU cooler
Buy now
SKU: 11-147-305 Category:

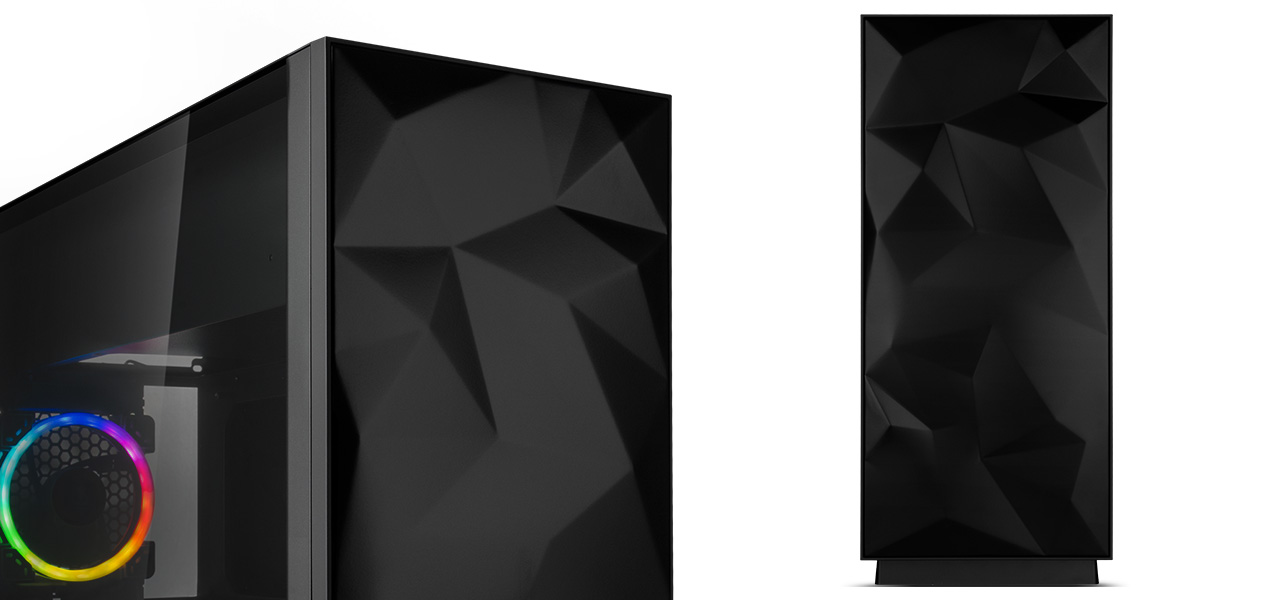

SLEEK & SOPHISTICATED
Instantly elevate your PC build with the PRISM S, a series of polished and unique angular computer cases that embody the ideal combination of minimal and flashy.
PITCH BLACK WITH RGB
Access endless RGB modes with the included fan hub’s motherboard software support. Alternatively, use the LED switch directly on the case to toggle between seven pre-programmed backlight effects and seven static colors.

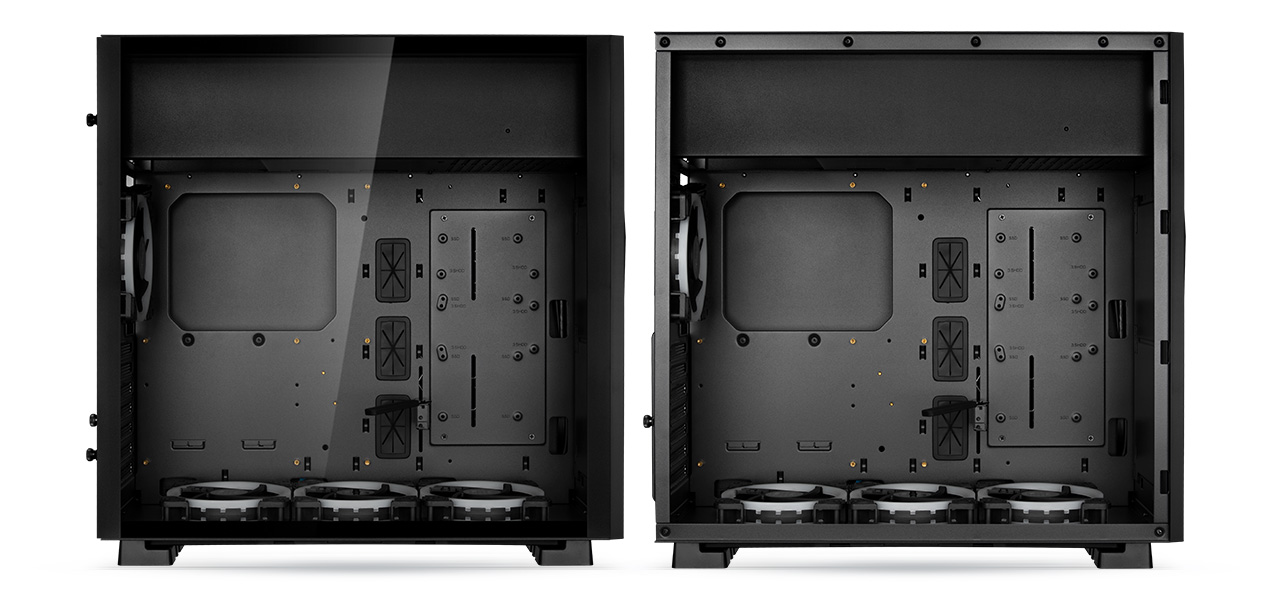

TEMPERED GLASS PANEL
Featuring a light grey, crystal clear and sturdy tempered glass side panel to show off components, custom mods, organized cable management and more.

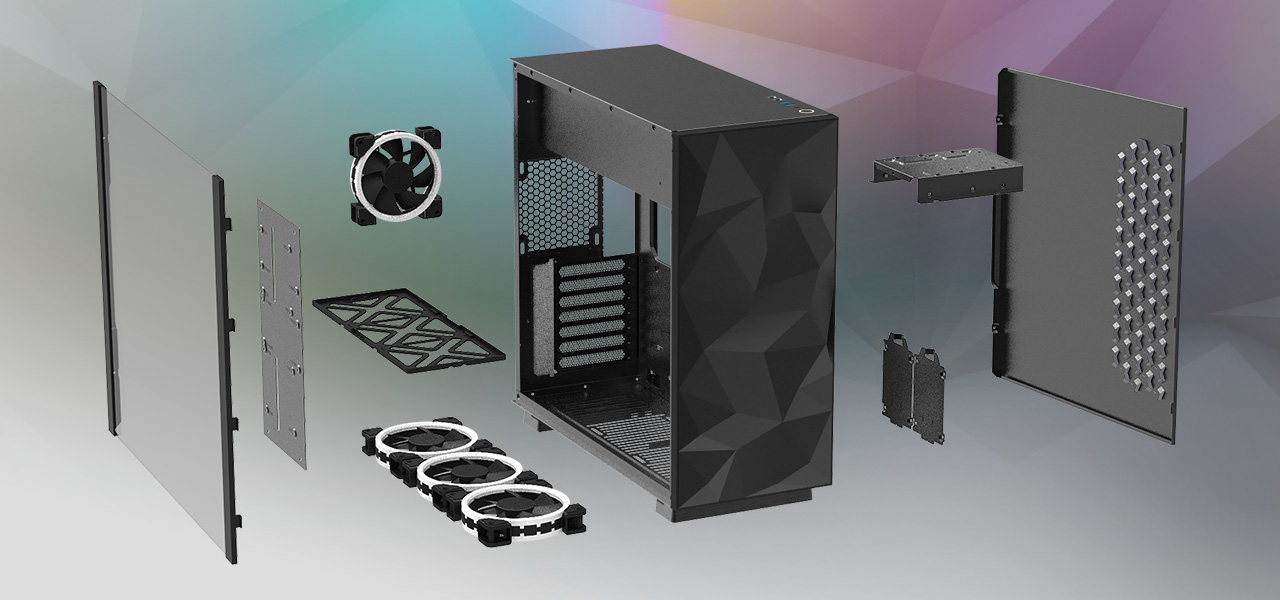

DESIGNED FOR UPGRADES
Ready to build within a unique layout boasting plenty of expansion and upgrade options.

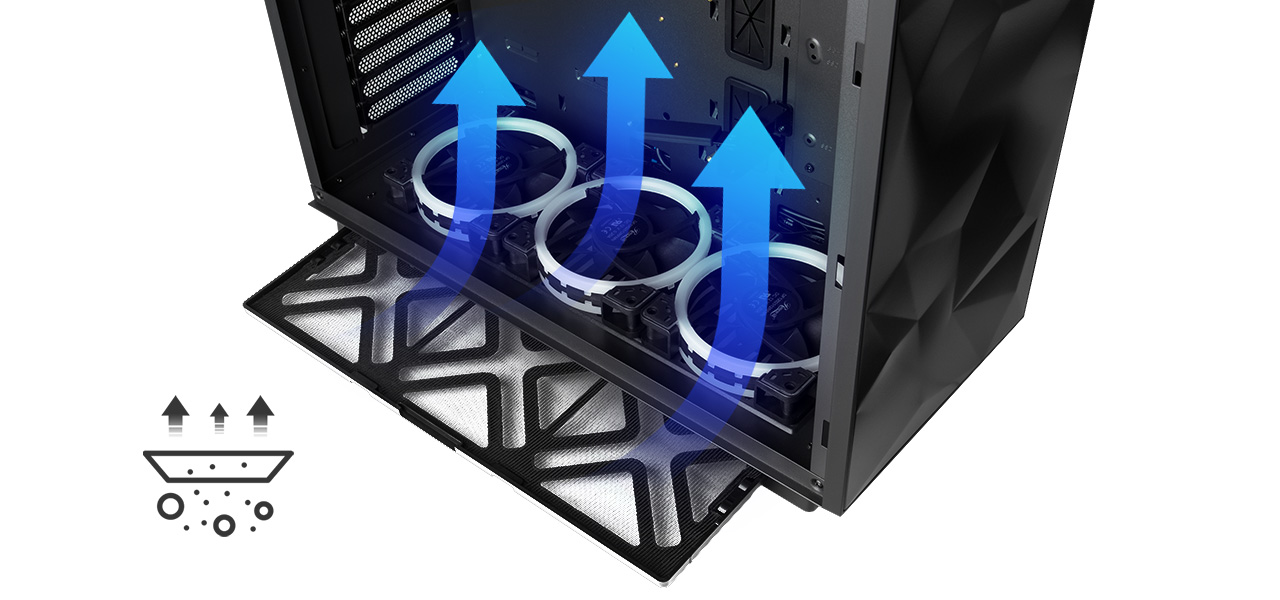

BOTTOM AIR INTAKE
Pre-installed fans draw cool air upwards toward GPU and motherboard. Plus, removable bottom dust filter permits easy maintenance, making particle buildup the least of your worries.
ADDITIONAL FEATURES

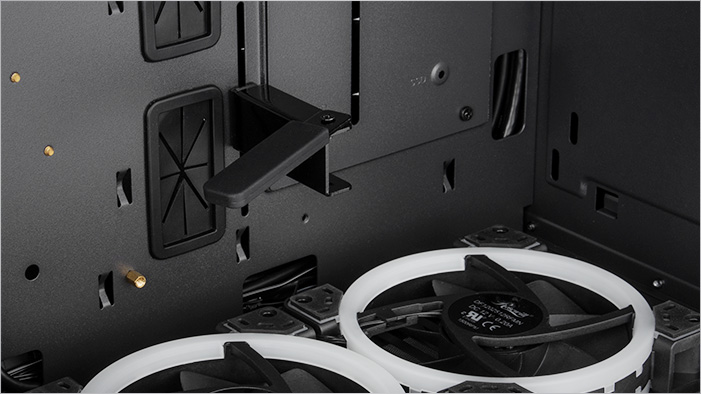

GPU BRACE
Adjust the GPU support bracket to prevent larger size video/graphics cards from sagging and unnecessary vibrations.

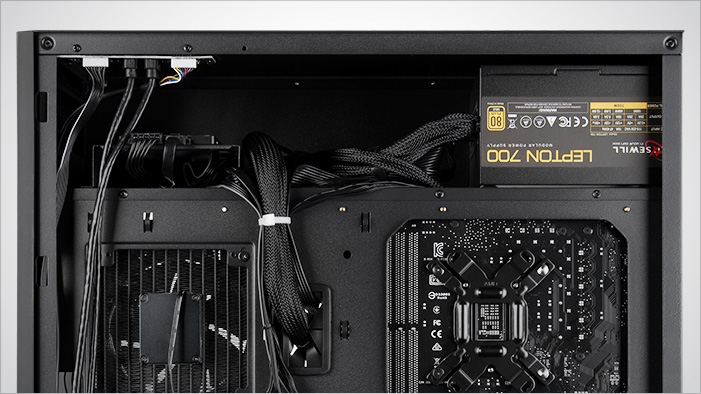

TOP PSU SHROUD
Tuck away cables within PSU shroud up top for clean cable management and increased air circulation.
VERTICAL RADIATOR

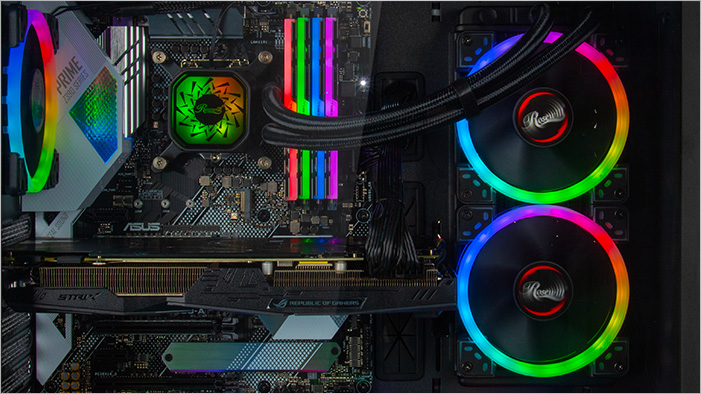

Supports vertically mounting your AIO to highlight your system and tie your rig together.
FRONT STORAGE

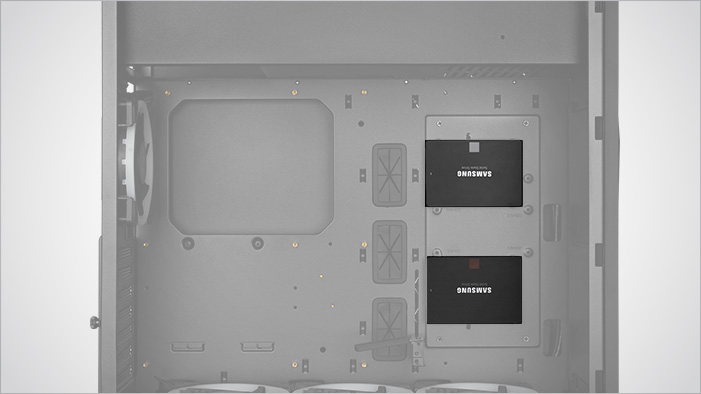

Install up to two additional SSD with the removable drive plate.

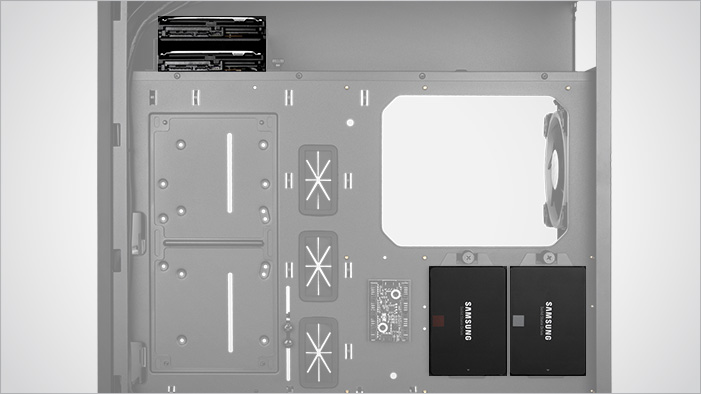

BACK STORAGE
Install two SSD within the removable trays and additional two HDD/SSD within the removable drive cage.
TOP I/O PANEL

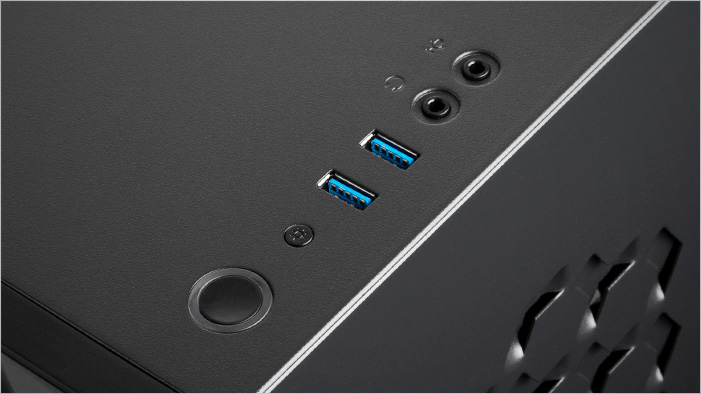

Convenient top I/O with two USB 3.0 ports, HD audio-in and mic-out jacks for easily connecting various peripherals and devices.
Weight 18.74 lbs
Dimensions 18.5 x 8.27 x 18.7 in
Case Type

Mid Tower

Case Material

Steel, Plastic, Tempered Glass

Motherboard Compatibility

Extended ATX (E-ATX), ATX, Micro ATX

With Power Supply

No

Power Supply Mounted

Top

Side Panel Window

Yes, Tempered Glass side panel

LED Color

RGB

Internal 3.5" Drive Bays

3 (0)

Internal 2.5" Drive Bays

2 (5)

Expansion Slots

7

Front Ports

2 x USB 3.0, Audio In & Out, LED Light Control

Fan Options

Bottom: 3 x 120mm fan (pre-installed)

Side: 2 x 120mm fan (optional)

Rear: 1 x 120mm fan (pre-installed)

Radiator Options

Bottom: Up to 360mm
Side: Up to 240mm

Max GPU Length Allowance

440 mm

Max CPU Cooler Height Allowance

160 mm

Max PSU Length Allowance

310 mm

Cable Management

Yes
