PSU ROSEWILL|500W GLACIER500M R
FEATURES
80 Plus Bronze certified to deliver over 85% efficiency

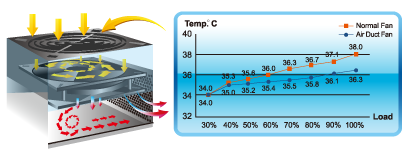

Silent 135mm Aero-Diversion fan with auto-speed control
further reduces the heat exhaust from the PSU
Modular cable management
ATX 12V v2.3-ready, supports EPS 12V v2.92 and backwards
compatible with ATX 12V v2.01
Active Power Factor Correction (PFC) with PF value of 0.99
Crossfire and SLI support
Over Current/Voltage/Temperature/Power Protection,
Under Voltage Protection and Short Circuit Protection
TUV, FCC, CE Certificated
Extra-long cables support full size gaming chassis
Three-Year Warranty
SPECIFICATIONS
Model: Glacier 500M
| AC INPUT | 100 ~ 240VAC | 8A-4A | 50/60Hz | |||||
| DC OUTPUT | ||||||
| +3.3V | +5V | +12V | -12V | +5VSB | ||
| 20A | 20A | 37A | 0.3A | 2.5A | ||
| 100W | 444W | 3.6W | 12.5W | |||
| TOTAL POWER | 500W | |||||
CONNECTORS
 20 + 4-Pin Mainboard x 1 |
 + 12V EPS 4 + 4-Pin Connector x 1 |
 6 + 2-Pin PCI-E Connector x 2 |
 S-ATA Connector x 5 |
 4-Pin Molex Peripheral Connector x 4 |
 4-Pin Floppy Connector x 1 |
PACKAGE CONTENTS
- Power Supply Unit
- Modular Cable Set
- User Manual
- AC Power Cord
- Three Cable Ties
- Four Mounting Screws
| Brand | Rosewill |
|---|---|
| Model | Glacier 500M |
| Type | ATX 12V v2.3 / EPS 12V v2.92 |
| Maximum Power | 500W |
| Fans | 1 x Silent 135mm Fan |
| PFC | Active |
| Main Connector | 20+4Pin |
| +12V Rails | Single |
| PCI-Express Connector | 2 x 6+2-Pin |
| SATA Power Connector | 5 |
| SLI | SLI Ready |
| CrossFire | CrossFire Ready |
| Modular | Modular |
| Efficiency | > 85% |
| Energy-Efficient | 80 PLUS BRONZE Certified |
| Over Voltage Protection | Yes |
| Input Voltage | 110 – 240 V |
| Input Frequency Range | 50/60 Hz |
| Input Current | 8 – 4A |
| Output | +3.3V @ 20A, +5V @ 20A, +12V @ 37A, -12V @ 0.3A, +5VSB @ 2.5A |
| MTBF | >100,000 Hours |
| Approvals | TUV, cTUVus, CE, FCC certified |
| Dimensions | 3.19" x 5.91" x 6.22" |
| Max PSU Length | 158 mm |
| Weight | 5.11 lbs. |
| Connectors | Fixed Cable: |
| Features | 80 PLUS BRONZE Certified, Continuous 500W at 40 Celsius Degrees Active-PFC with auto AC-input voltage adjustment (110 – 240V) Single strong 12V rail – ideal for gaming system SLI & CrossFire ready – 2 x 6+2-pin connector Silent 135mm fan with auto fan speed control Aero-diversion design on the fan further reduces the temperature inside of PSU Over Current / Voltage / Power Protection, Under Voltage Protection, and Short Circuit Protection provide maximum safety to your critical system components Safety & EMI Approval: CE, FCC, ROHS |
