Rosewill PMG Series, PMG1200, 1200W Fully Modular Power Supply, 80 PLUS GOLD Certified, Low Noise, Single +12V Rail, SLI & CrossFire Ready, Black
$309.99
Shipping Information
Additional fees may apply for shipments to APO/FPO, AK, HI, PR. and large item
shipping is not available to AA, AE, AP, HI, AK, PR and some unique locations,
such as specific islands.
FREE SHIPPING
Shipping Information
Additional fees may apply for shipments to APO/FPO, AK, HI, PR. and large item
shipping is not available to AA, AE, AP, HI, AK, PR and some unique locations,
such as specific islands.
Ships from United States.
Most customers receive within
6-8
days .
- 80 Plus Gold Certified: Delivers 90% or more efficiency under typical load conditions and provides numerous defenses for your sensitive equipment, including protection from short-circuit, over-current, over-voltage, over-power, under-voltage, and over-temperature.

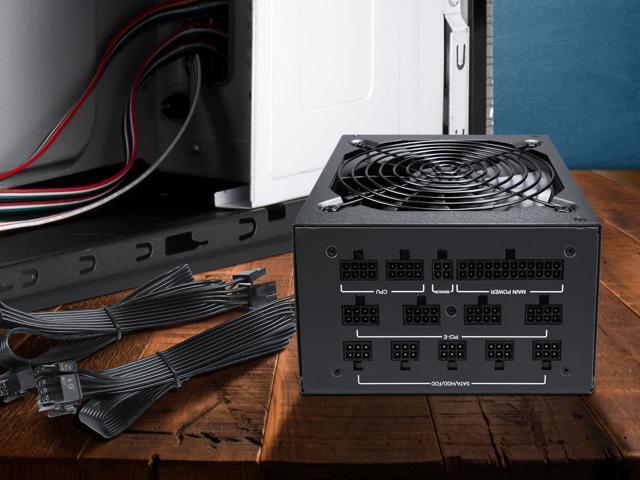

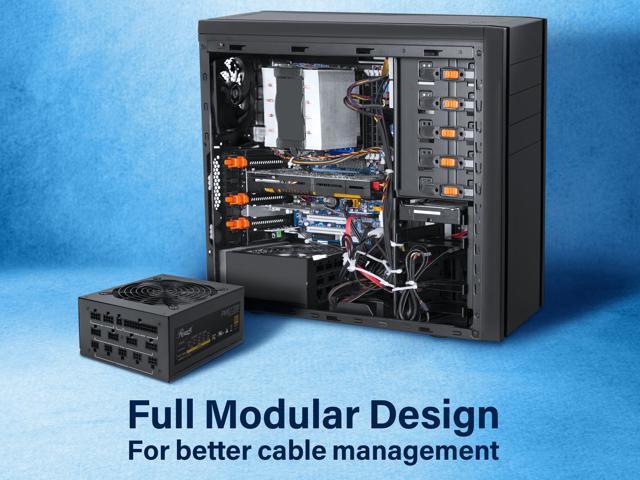

- Function First: Reduce dust build-up and achieve better cable management with this fully modular 1200w power supply using only the cables your build requires.
- Superior Silence: A 135mm fan provides the PSU with optimal airflow and lower noise. Enjoy your content without extra noise pollution.

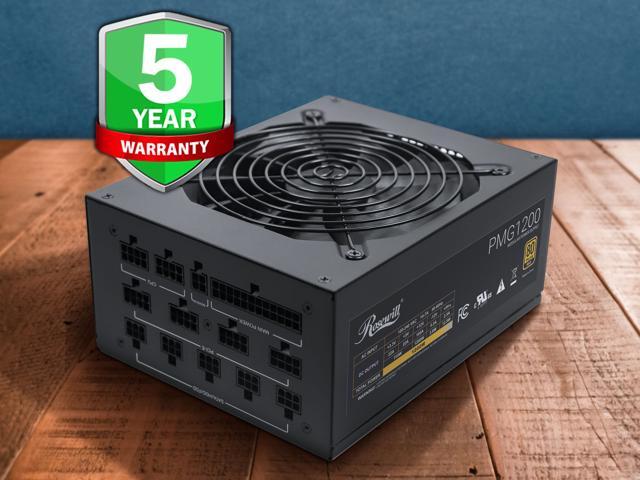

- 5-Year Warranty: Dependability is paramount, and if anything does go wrong, your PSU is protected.
QUANTITY
OUT OF STOCK
Overview
Specs
Reviews
LEARN MORE ABOUT THE ROSEWILL PMG1200
General
Brand
Rosewill
Series
PMG Series
Model
PMG1200
Details
Type
ATX 12V v2.31 / EPS 12V v2.92
Maximum Power
1200 W
Fans
1 x Silent 135mm Fan
PFC
Active
Main Connector
20+4Pin
+12V Rails
Single
PCI-Express Connector
8 x 6+2-Pin
SATA Power Connector
8
SLI
SLI Ready
CrossFire
CrossFire Ready
Max PSU Length
185 mm
Modular
Full Modular
Power Good Signal
100-500ms
Hold-up Time
16ms min.

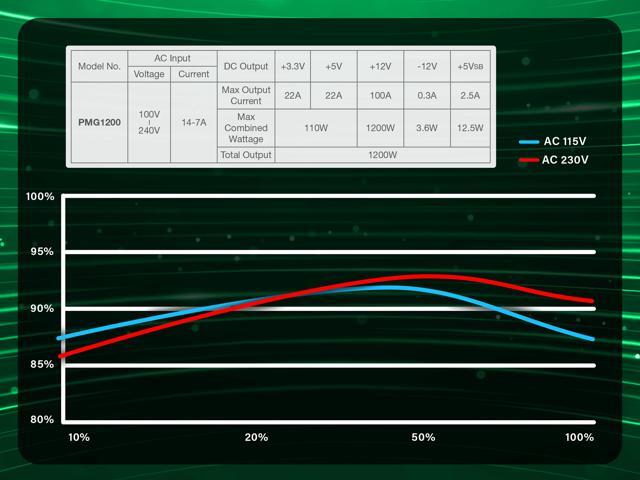

Efficiency
Up to 91%
Energy-Efficient
80 PLUS GOLD Certified
Over Voltage Protection
Yes
Overload Protection
Yes
Input Voltage
100 - 240 V
Input Frequency Range
50/60 Hz
Output
+3.3V@22A, +5V@22A, +12V@100A, -12V@0.3A, +5VSB@2.5A
MTBF
>100,000 Hours
Approvals
UL, FCC
Connectors
1 x 24 pin (20+4) ATX
2 x 8 pin (4+4) EPS (CPU)
8 x 8 pin (6+2) PCIe
8 x SATA
3 x 4 pin Peripheral
1 x Floppy

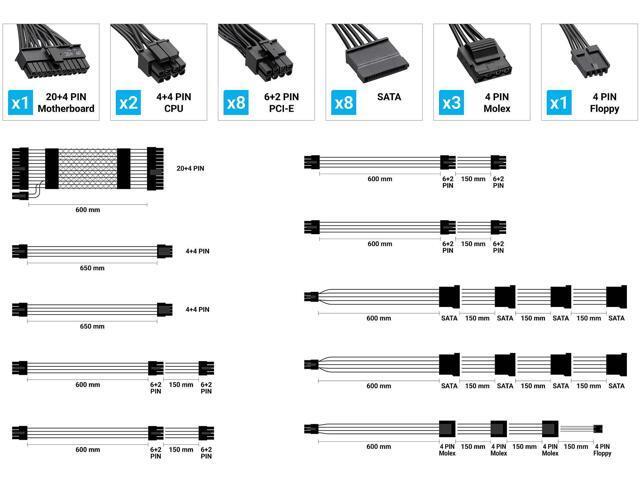

Cable Spec
20+4Pin MB: One cable (600mm)
4+4Pin CPU: Two cables (650mm)
2 x 6+2Pin PCIe: Four cables (600+150mm)
4 x SATA: Two cables (600+150+150+150mm)
3 x Molex + 1 x Floppy: One cable (600+150+150+150mm)
Features
Features
The PMG1200 1200 watt power supply offers great quality and even greater performance for your gaming desktop PC. 80 Plus Gold certified to deliver more than 90% efficiency under typical load conditions and features various protections. The fully modular design of the power supply allows for neater cable management, reduces dust build-up and improves airflow within your case. Built to be a high performance gaming power supply, the PMG1200 features high quality PC parts, including an ultra quiet 135mm fan.
Dimension & Weight
Dimensions
3.39" x 5.91" x 7.28"
Additional Information
Date First Available
December 07, 2021
