Rosewill

CL-AD-MDP2HDV-6-WH

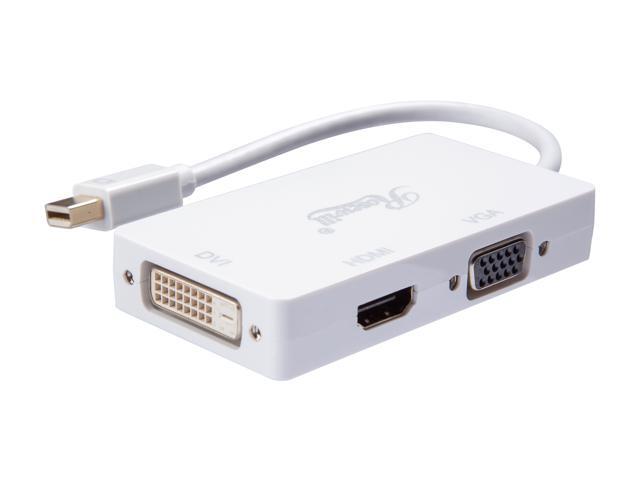

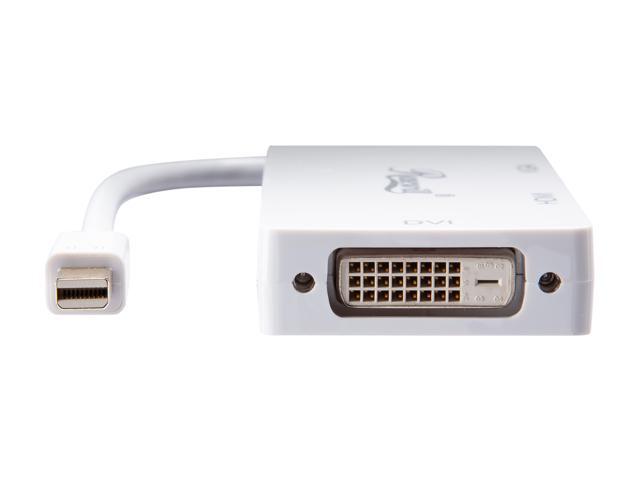

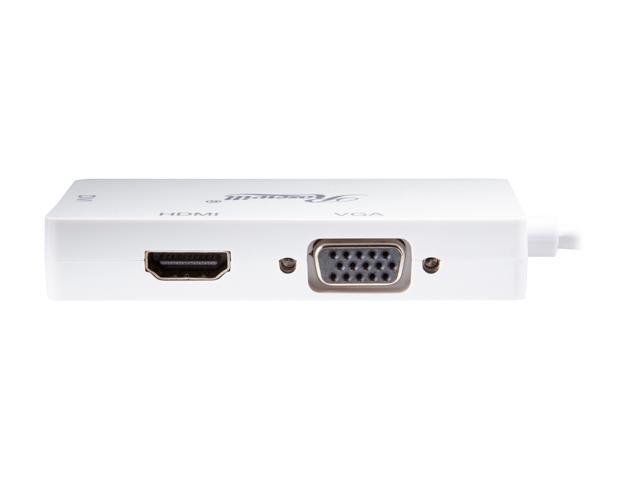

Mini DP to VGA / HDMI / DVI

White

6"

Input Signal: Mini Display Port 1.1a Output Video: HDMI/DVI/VGA Vertical Frequency Range: 50/60Hz Video Amplifier Bandwidth: 2.25Gbps/225MHz HDMI/DVI/VGA:480i/480p,576p,720p,1080i/1080P and 1920 x 1200 reduced blanking External Power Supply: No external power needed Power consumption (Max): 700mW External Power Supply: No external power needed Operating Temperature: 0 degree C to +70 degree C Operating Humidity: 10% to 85 % RH (no condensation) Storage Temperature: -10 degree C to +80 degree C Storage Humidity: 5% to 90 % RH (no condensation)

Mini Displayport 20-pin Male, Gold Plated

HDMI 19-pin Female DVI-I (24+5) Female VGA (HD 15) Female

A passive adapter cable that requires a DP++ port (DisplayPort++), meaning that DVI and HDMI signals can also be passed through the port.Allows for audio pass-through if supported by the video source Use this three in one adapter to connect your device with Mini displayport to many types of display devices, such as HDTVs, projectors, and monitors This product with three output ports, and you can choose one of them to use at a time as you demand.IT DOES NOT CONVERT TO THREE OUTPUTS AT THE SAME TIME For HDMI converter: Complant with Mini DisplayPort 1.1a Dual-mode (DP++) input Thunderbolt compatible Complant with HDMI 1.3b output with HDPC pass-through Bandwidth up to 225MHz/2.25Gbps per channel,total 6.75Gbps Max Resolution up to full HD 1080P,1920 x 1080 @60Hz Support HDMI 12bit per channel (36bit all channels) deep color Support audio output when mini DP signal includ auido, like iMac (Late 2009) and MacBook Pro (Mid 2010) Support 12bit per channel (36bit all channel) deep color Plug and Play, No Software to Install Power by DisplayPort source,no external Power needed For DVI converter: Complant with Mini DisplayPort 1.1a Dual-mode (DP++) input Thunderbolt compatible Complant with DVI 1.0 output with HDPC pass-through Bandwidth up to 225MHz/2.25Gbps per channel,total 6.75Gbps Supports full HD 1080P and 1920x1200 (reduced blanking) for Computers Support DVI 12bit per channel (36bit all channels) deep color Plug and Play, No Software to Install Power by DisplayPort source, no external Power needed For VGA converter: Complant with Mini DisplayPort 1.1a Thunderbolt compatible Supports analog resolution up to 1080p, 1920 x 1200 reduced blanking Integrated triple 10-bit, 162 MHz video DAC for analog VGA signal output EDID pass-through from PC source to display Spread Spectrum (de-spreading) for EMI reduction Automatic sink detection

December 07, 2021
